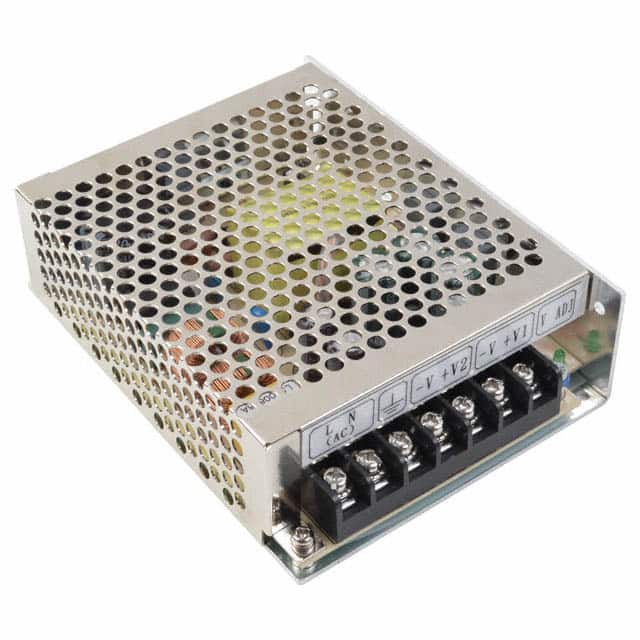

The CUI Inc. VGD-60-D512 is an enclosed AC-DC power supply designed for various applications. It delivers up to 60W of continuous power with a universal input range of 85-264 Vac or 120-370 Vdc.
This model offers dual outputs, providing 5V and 12V. Key electrical specifications include a maximum output current of 0.3A for each output, an efficiency of up to 79%, and line/load regulation of ±1% and ±5% respectively. It incorporates essential protections such as overload, over voltage, and short circuit.
The power supply is designed for chassis mounting and operates within an ambient temperature range of -10°C to 60°C with derating. Its dimensions are 129 x 98 x 38 mm, and it utilizes free air convection for cooling.
Safety approvals include UL/cUL and Intertek 60950-1, with EMI/EMC compliance to EN 55022 Class B standards. The VGD-60-D512 is suitable for ITE (Commercial) applications.
The VGD-60-D512 provides a 5V output.
The maximum output current for the VGD-60-D512 is 0.3A.
The VGD-60-D512 has a maximum power output of 6W.
The efficiency of the VGD-60-D512 is up to 79%.
The VGD-60-D512 accepts a universal input voltage range of 85-264 Vac or 120-370 Vdc.
The VGD-60-D512 includes overload, over voltage, and short circuit protections.
The VGD-60-D512 operates within a temperature range of -10°C to 60°C, with derating.
