| Category | |
| Manufacturer Name | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

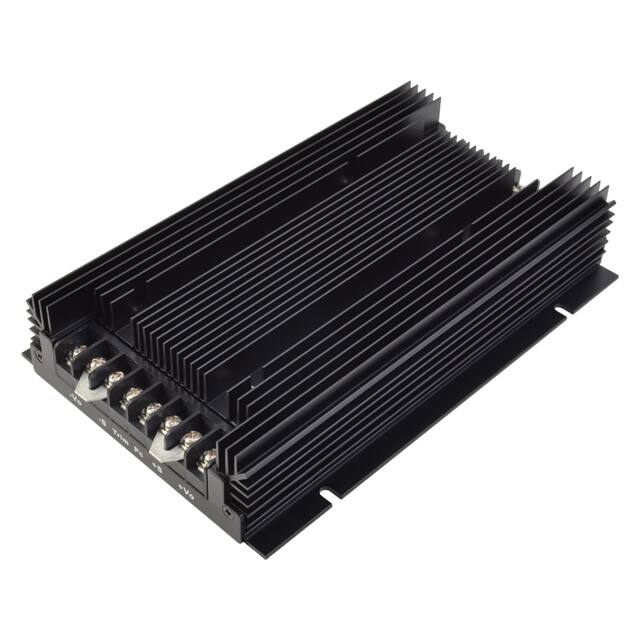

The CUI Inc. VFK600-D48-S48 is a high-power DC-DC converter from the VFK600 series, designed for demanding applications. It features an enclosed, rugged metal construction with an integrated heat sink for efficient thermal management.
This converter operates with a 36~75 Vdc input range and provides a single 48 Vdc output at up to 12.5A, delivering a total of 600W of power. Key electrical specifications include 1,500 Vdc isolation, up to 92% efficiency, and protections against over current, over temperature, over voltage, and short circuits. It also supports remote on/off functionality and N+1 current sharing.
The unit is designed for chassis mounting and has a wide operating temperature range of -40°C to 100°C. Its dimensions are 199.1mm x 126.8mm x 39.1mm, making it suitable for integration into various systems requiring robust power conversion.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 36 to 75 Vdc.
The output voltage is 48 Vdc and the maximum output current is 12.5 A.
The maximum power output is 600 W.
The typical efficiency is 92%.
The dimensions are 199.1mm in length, 126.8mm in width, and 39.1mm in height.
The operating temperature range is -40°C to 100°C.
Yes, it features continuous short circuit protection.
