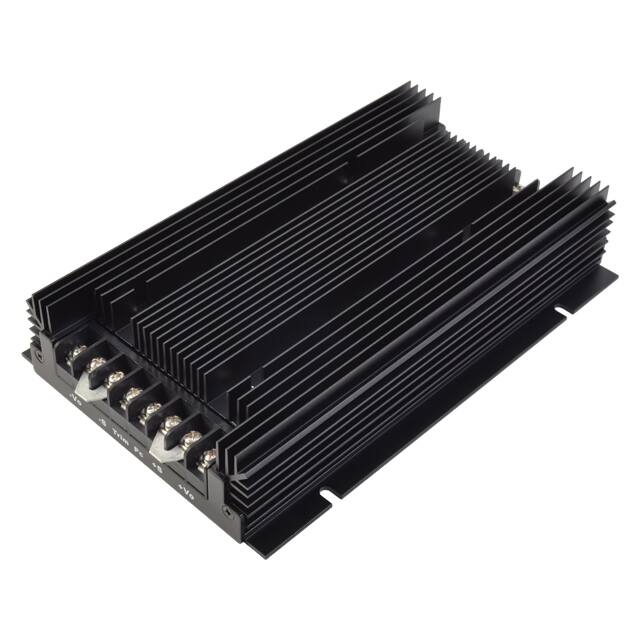

The CUI Inc. VFK600-D48-S28 is a high-power enclosed DC-DC converter from the VFK600 series. It delivers a robust 700W of output power at 28Vdc, designed for demanding applications.
This converter features a wide 2:1 input voltage range of 36-75 Vdc, making it versatile for various power systems. It offers an impressive efficiency of up to 91% and includes comprehensive protections such as over current, over temperature, over voltage, and short circuit.
Designed for chassis mounting, the VFK600-D48-S28 integrates a rugged metal enclosure with an effective heat sink. Its operating temperature range spans from -40°C to 100°C, ensuring reliability in diverse environmental conditions. Additional features include remote on/off control and N+1 current sharing capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The VFK600-D48-S28 DC-DC converter has a maximum output power of 700W.
The input voltage range for the VFK600-D48-S28 is 36 to 75 Vdc.
The CUI Inc. VFK600-D48-S28 DC-DC converter provides a nominal output voltage of 28 Vdc.
The maximum output current for the VFK600-D48-S28 is 25A.
The VFK600-D48-S28 DC-DC converter has a typical efficiency of 91%.
The operating temperature range for the VFK600-D48-S28 is -40°C to 100°C.
The VFK600-D48-S28 is designed for chassis mounting.
