| Category | |
| Manufacturer Name | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

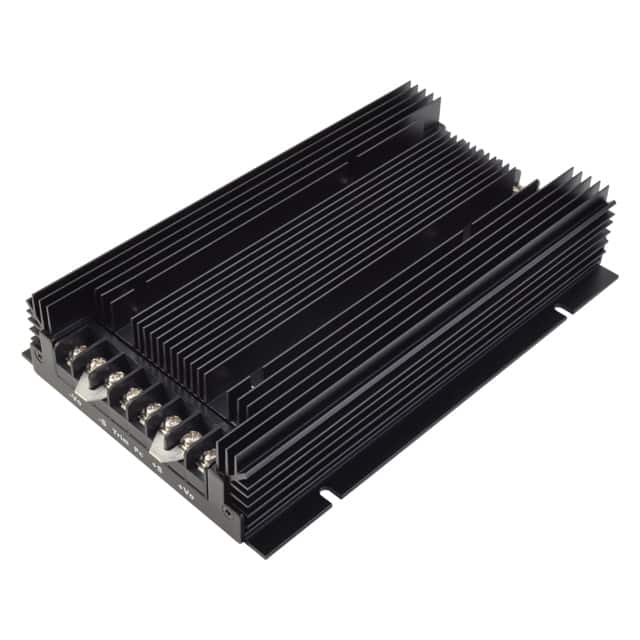

The CUI Inc. VFK600-D24-S48 is a robust DC-DC converter designed for demanding applications. It features an enclosed, rugged metal construction with an integrated heat sink, suitable for chassis mounting.
This converter provides a single 48Vdc output at up to 12.5A, delivering a total of 600W of power. It accepts a wide 2:1 input voltage range, specifically 18-36Vdc for this model. Key electrical specifications include high efficiency up to 92%, 1,500 Vdc isolation, and comprehensive protections such as over current, over temperature, over voltage, and short circuit.
The unit measures 199.1mm x 126.8mm x 39.1mm and operates reliably within a temperature range of -40°C to 100°C. Additional features include remote on/off capability and N+1 current sharing, making it a versatile solution for various power conversion needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The VFK600-D24-S48 has a nominal output voltage of 48 Vdc.
The maximum output power for the VFK600-D24-S48 is 600W.
The input voltage range for this model is 18-36 Vdc.
The operating temperature range is -40°C to 100°C.
Yes, it features over current protection ranging from 110% to 150% of the nominal output current.
This converter uses a chassis mount.
