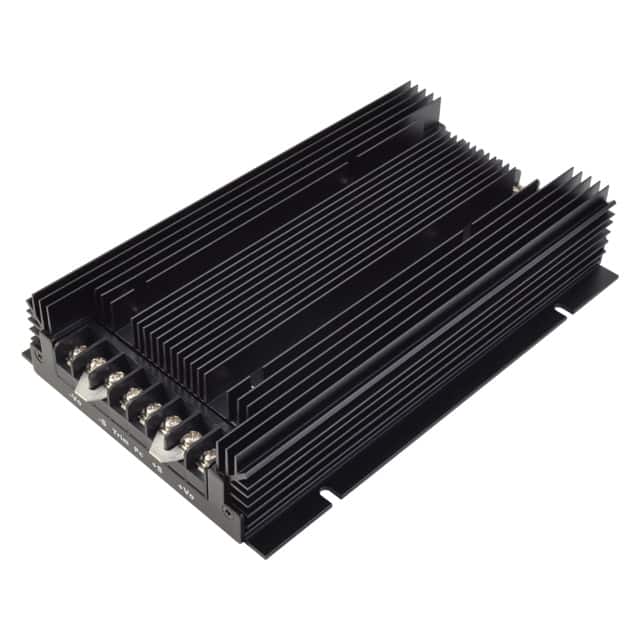

The CUI Inc. VFK600-D24-S24 is an enclosed DC-DC converter designed for reliable power conversion. It operates with an input voltage range of 18-36 Vdc and provides a single 24V output, delivering up to 600W of power. This converter boasts a high efficiency of 91% and features integrated protections including over-current, over-temperature, over-voltage, and short-circuit.
With a rugged metal enclosure and integrated heat sink, the VFK600-D24-S24 is suitable for demanding applications. It supports chassis mounting for easy integration into systems. The converter also includes remote on/off functionality and N+1 current sharing capabilities, enhancing its versatility and reliability in various industrial and commercial power solutions.
Key electrical specifications include 1,500 Vdc isolation, line regulation of ±0.2%, and load regulation of ±0.5%. The operating temperature range is -40°C to 100°C, ensuring performance in diverse environmental conditions. Its dimensions are 199.1mm x 126.8mm x 39.1mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 18 to 36 Vdc.
The output voltage is 24 Vdc and the output current is 25A.
The maximum power output is 600W.
The typical efficiency is 91%.
The operating temperature range is -40°C to 100°C.
Yes, it has over-voltage protection up to 140% of the nominal output voltage.
It supports chassis mounting.
