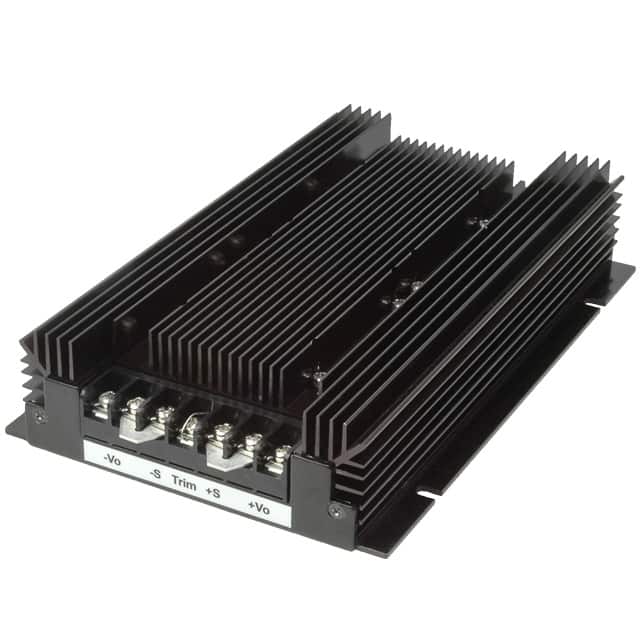

The CUI Inc. VFK400W-Q48-S48 is an enclosed DC-DC converter designed for robust performance. It offers a single 48V output with a maximum current of 8.3A, delivering up to 398W of power.
Key electrical specifications include an input voltage range of 18~75 Vdc, a high efficiency of up to 86.5%, and protections such as over current, over temperature, over voltage, and short circuit.
This converter features a chassis mount type and a rugged metal enclosure with an integrated heat sink, making it suitable for demanding applications. The operating temperature range is -40°C to 100°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 18 to 75 Vdc.
The output voltage is 48 Vdc.
The maximum output current is 8.3 A.
The maximum efficiency is 86.5%.
The isolation voltage is 1500 Vdc.
It operates from -40°C to 100°C.
