| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cooling Type | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

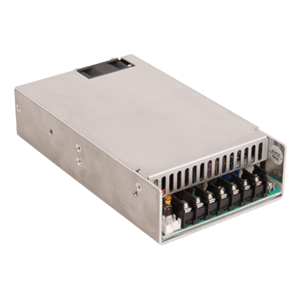

The CUI Inc. VF-S320-54A is a 320W AC-DC power supply designed for chassis mounting. It provides a 54VDC output at 5.93A and operates within a wide input voltage range of 90-180 VAC.
Key features include adjustable output, power factor correction (PFC), and universal input capability, making it versatile for various applications. The unit has an efficiency of 83% and operates with fan cooling. Its dimensions are 177.8 x 101.6 x 40.64 mm, housed in a metal case.
This power supply is suitable for ITE (Commercial) applications and meets standards such as 55024, 55032 Class B, 61000-3-2, 61000-3-3, and 62368-1. It is approved by agencies including CB Scheme, EN, IEC, SIQ, TUV, and UL.
The VF-S320-54A provides a 54 VDC output voltage and a 5.93 A output current.
The input voltage range for the VF-S320-54A is 90 to 180 VAC.
Key features include adjustable output, power factor correction (PFC), and universal input.
The operating temperature range is 0 to 50 degrees Celsius.
The VF-S320-54A is cooled by a fan.
The dimensions are 177.8mm x 101.6mm x 40.64mm.
It complies with standards including 55024, 55032 Class B, 61000-3-2, 61000-3-3, and 62368-1.
