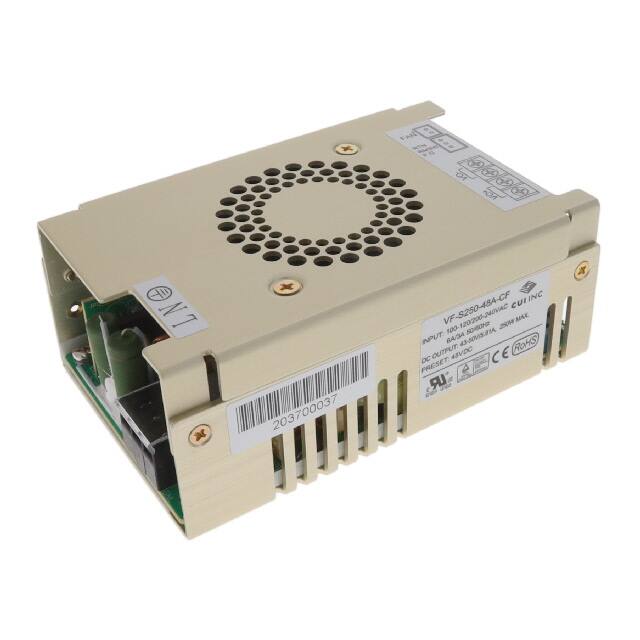

VF-S250-48A-CF The CUI Inc. VF-S250-48A-CF is a 250W AC-DC power supply with a 48Vdc output. It offers 83% efficiency and features passive power factor correction.
Mfr Part #:

VF-S250-48A-CF

Mfr Name: CUI Inc.
CUI Inc.
The CUI Inc. VF-S250-48A-CF is a 250W AC-DC power supply with a 48Vdc output. It offers 83% efficiency and features passive power factor correction.
Stock on Request

VF-S250-48A-CF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Frequency
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Output Voltage
Power (Watts)
Standard Number
Type
Voltage
Width

VF-S250-48A-CF Description

Short technical summary and product information.

The CUI Inc. VF-S250-48A-CF is an enclosed AC-DC power supply designed for ITE (Commercial) applications. It delivers up to 250W of continuous power with a 48Vdc output voltage and a maximum current of 5.21A.



Key electrical specifications include a wide input voltage range of 90-264Vac and an input frequency of 47-63Hz. The power supply boasts an efficiency of up to 83% and features passive power factor correction compliant to EN 61000-3-2 Class A. It also includes protections for over-voltage, over-current, short-circuit, and over-temperature.



Designed for chassis mounting, this unit has dimensions of 127.0mm x 81.3mm x 50.8mm. It operates within a temperature range of 0°C to 70°C with derating and provides 3000Vac isolation voltage. Additional features include remote on/off control and a power good signal.

VF-S250-48A-CF Quick Information

Product Type: AC DC Converter
Series: VF-S250-XXA-CF
Canonical Name: CUI Inc. VF-S250-48A-CF AC-DC Power Supply
Subcategory: AC DC Converters

VF-S250-48A-CF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

VF-S250-48A-CF Features

  • Delivers 250W continuous power output.
  • Provides a stable 48Vdc output voltage.
  • Achieves up to 83% efficiency.
  • Features passive power factor correction.
  • Supports remote on/off control.

VF-S250-48A-CF Applications

  • Suitable for ITE commercial applications.
  • Designed for chassis mount integration.
  • Offers universal AC input voltage.
  • Includes comprehensive protection features.

VF-S250-48A-CF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the VF-S250-48A-CF?

The output voltage is 48Vdc.

What is the maximum output current for this AC-DC converter?

The maximum output current is 5.21A.

What is the power rating of the CUI Inc. VF-S250-48A-CF?

The power rating is 250W.

What is the typical efficiency of the VF-S250-48A-CF?

The typical efficiency is 83%.

What is the input voltage range for the VF-S250-48A-CF?

The input voltage range is 90-264Vac.

What are the operating temperature limits for this power supply?

The operating temperature range is 0°C to 70°C with derating.

How is the VF-S250-48A-CF mounted?

It is designed for chassis mounting.
