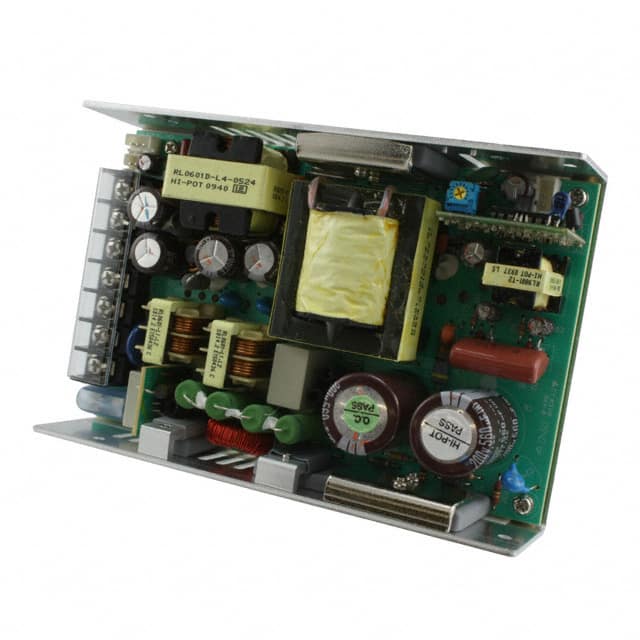

The CUI Inc. VF-D320-D524A is an open frame AC-DC power supply designed for ITE (Commercial) applications. It operates with a universal input voltage range of 90-264 Vac and a frequency of 47-63 Hz.
This converter provides a nominal output voltage of 24V with a maximum current of 8.33A, delivering up to 320W of power. Key electrical features include adjustable output up to ±5%, line and load regulation of ±5%, and an efficiency of 75%. It also incorporates passive power correction and a power good signal.
For protection, the VF-D320-D524A includes over-voltage, over-current (foldback mode), short-circuit, and over-temperature protections. It boasts a high isolation voltage of 3000 Vac.
The unit is chassis mountable and operates within a temperature range of 0°C to 70°C with derating. Its dimensions are 152.4mm x 101.6mm x 38.1mm. The converter is certified to IEC/EN/UL 62368 standards.
The CUI Inc. VF-D320-D524A has a nominal output voltage of 24V.
The maximum output current for the VF-D320-D524A is 8.33 A.
The CUI Inc. VF-D320-D524A has a power rating of 320W.
The operating temperature range for the VF-D320-D524A is 0°C to 70°C with derating.
The dimensions of the VF-D320-D524A are 152.4mm x 101.6mm x 38.1mm.
The VF-D320-D524A supports chassis mount.
The VF-D320-D524A is certified to IEC/EN/UL 62368 standards.
