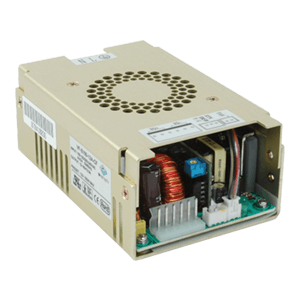

The CUI Inc. VF-D250-D324A is an open frame AC/DC converter designed for ITE (Commercial) applications. It offers a power output of 200W, with dual output voltages of 3.3VDC and 24VDC, and corresponding currents of 24A and 6A. The unit features active power factor correction, power good signal, and remote on/off capabilities.
With dimensions of 127 x 81.28 x 50.8 mm (5 x 3.2 x 2 inches), it is designed for chassis mounting. The converter operates within a temperature range of 0°C to 70°C with derating and meets safety standard 62368. Safety approvals include CE, GS, and UL/cUL.
This product has been discontinued. Please contact our sales team for any questions or concerns regarding this part or for alternative solutions.
The VF-D250-D324A AC/DC converter has a power rating of 200W.
The VF-D250-D324A offers dual output voltages of 3.3VDC and 24VDC.
The dimensions of the VF-D250-D324A are 127 x 81.28 x 50.8 mm (5 x 3.2 x 2 inches).
The operating temperature range is 0°C to 70°C with derating.
The VF-D250-D324A complies with safety standard 62368 and has approvals including CE, GS, and UL/cUL.
The VF-D250-D324A is listed as RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the VF-D250-D324A is 1 Unlimited.
