| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Voltage | |
| Width |

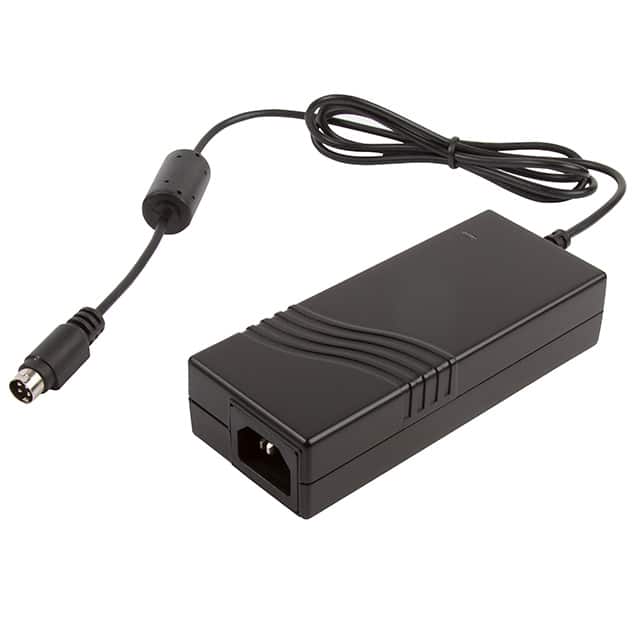

The XP Power VES90PS19 is a versatile 90W AC/DC desktop power supply designed for ITE (Commercial) applications. It provides a stable 19V output at 4.74A, with a total regulation of ±5% and a typical efficiency of 89%.
This power supply meets stringent energy standards, including Energy Efficiency Level VI and European CoC Tier 2. It features a wide input voltage range of 90-264 VAC and a standard IEC320-C14 input connector. The unit operates reliably within a temperature range of 0°C to 60°C and utilizes natural convection cooling.
Key electrical specifications include a low no-load input power consumption of 0.15W, overvoltage protection, and short circuit protection. The dimensions are 139.0mm x 58.0mm x 31.0mm, making it a compact solution for various integration needs. The output connector is a 4-pin Power DIN.
Compliance includes CB certification and adherence to standards like IEC62368-1. The RoHS status is RoHS3 Compliant, and it has an MSL rating of 1.
The input voltage range is 90-264 VAC at 47-63 Hz.
It provides 19 VDC at 4.74 A, up to 90 W.
Operating temperature is 0°C to 60°C, with derating from 100% load at 40°C to 50% load at 60°C.
Overload protection is 120-200%, overvoltage protection is 180%, and short circuit protection is hiccup mode with auto reset.
Typical efficiency is 89% and no-load input power is 0.15 W.
It is a desktop Class I adapter with an IEC 320-C14 input connector, 4-pin Power DIN output connector, and 1.20 m cord.
It has CB approval to IEC 62368-1.
