| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Voltage | |
| Width |

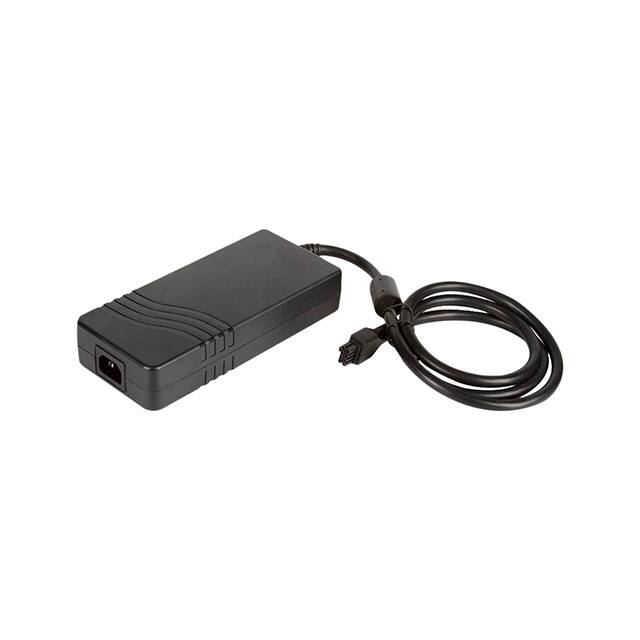

The XP Power VES180PS24 is part of the VES180 series of AC-DC power supplies, offering a 180W output power capacity. This desktop unit provides a stable 24V DC output with a maximum current of 7.5A.
Designed for international use, it features a universal input voltage range of 90-264 VAC and complies with Efficiency Level VI and European CoC Tier 2 standards. The power supply operates within an ambient temperature range of -10°C to 60°C and utilizes natural convection cooling.
Key electrical specifications include a low no-load power consumption of 150mW (max), line regulation of ±0.5%, and total regulation of ±5%. It incorporates overload protection (110-160%), overvoltage protection (180%), and auto-resetting short circuit protection.
Mechanical details include dimensions of 197.4mm x 88.9mm x 39.0mm and an IEC 320-C14 input connector. The output is delivered via a rectangular 8-position connector with a cord length of 47.2 inches (1.20m).
The input voltage range is 90 to 264 VAC at 47 to 63 Hz.
The output is 24 VDC at 7.5 A, providing 180 W of power.
It meets Level VI and CoC Tier 2 efficiency standards, with no-load power consumption of 150 mW.
Overload protection at 110-160%, overvoltage protection at 180% (recycle mains to reset), and short circuit protection with hiccup auto-restart.
The operating temperature range is -10°C to 60°C, with derating from 100% load at 40°C to 50% load at 60°C.
The dimensions are 197.4mm (length) x 88.9mm (width) x 39.0mm (height).
It is approved by CB, CCC, and TUV, and complies with EN61000-3-2 Class A for power factor.
