| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Voltage | |
| Weight | |
| Width |

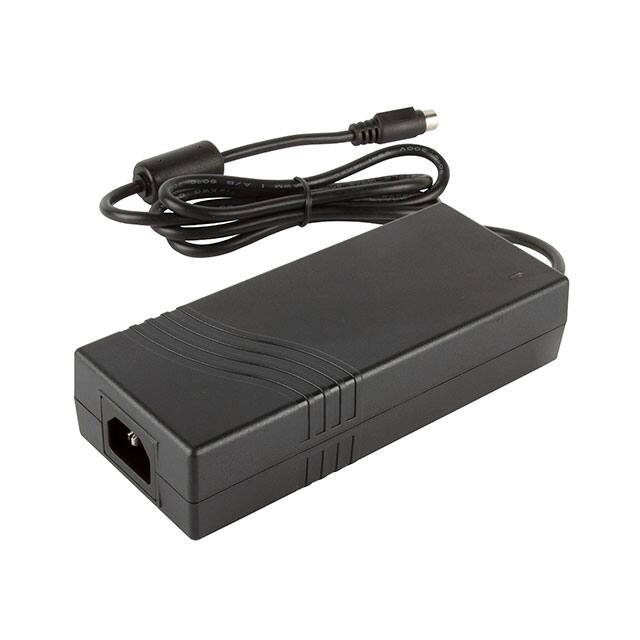

The XP Power VES150PS12 is a 150-watt AC-DC power supply designed for desktop applications. It provides a single 12V output with a maximum current of 12.5A. This power supply meets Energy Efficiency Level VI and European CoC Tier 2 requirements, ensuring reduced energy consumption.
Key electrical specifications include a wide input voltage range of 90-264 VAC and an input frequency of 47-63 Hz. It features a typical efficiency of 89% and a low no-load input power of 0.15W. Protection features include overload, overvoltage, and short circuit protection.
The unit has a compact desktop form factor with dimensions of 169.2 x 70.9 x 39.6 mm. It utilizes an IEC 320-C14 input connector and a 4-pin Power DIN output connector. The operating temperature range is -10°C to 60°C, with natural convection cooling.
This power supply is suitable for ITE (Commercial) applications and is approved by agencies such as CB, CCC, TUV, and UL, making it suitable for international use.
The output voltage is 12 VDC.
The maximum output current is 12.50 A.
The power rating is 150 W.
The operating temperature range is -10 to 60 °C.
Yes, it meets Energy Efficiency Level VI and CoC Tier 2.
It uses an IEC 320-C14 input connector.
The dimensions are 169.2mm x 70.9mm x 39.6mm.
