| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Temperature Coefficient | |
| Voltage | |
| Weight | |
| Width |

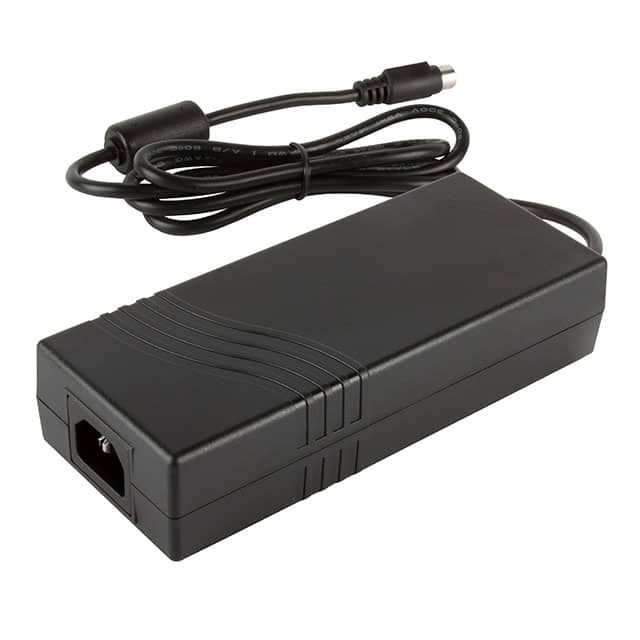

The XP Power VES120PS12 is a high-performance AC-DC desktop power supply designed for ITE (Commercial) applications. It delivers a stable 12V output at 10A, providing a total of 120W of power.
This power supply features a universal input voltage range of 90-264 VAC and operates at frequencies between 47-63 Hz. It boasts an efficiency of 89% and meets Energy Efficiency Level VI and European CoC Tier 2 standards, ensuring reduced energy consumption. The unit is equipped with an IEC 320-C14 input connector and a 4-pin Power DIN output connector.
With a compact form factor measuring 168.0 x 71.0 x 37.5 mm, the VES120PS12 is suitable for various integration needs. It operates within an ambient temperature range of 0°C to 60°C and utilizes natural convection for cooling. Safety and reliability are enhanced by features such as overload protection (120-200%), overvoltage protection (180%), and short circuit protection with auto-reset.
Compliance certifications include CB, CCC, UL, and GS, adhering to the Standard Number 62368-1. The RoHS status is RoHS3 Compliant, and it has an MSL rating of 1.
The XP Power VES120PS12 has an output voltage of 12V and an output current of 10A.
The VES120PS12 power supply has a power rating of 120W.
The efficiency of the XP Power VES120PS12 is typically 89%.
The operating temperature range for this power supply is 0°C to 60°C.
The VES120PS12 uses an IEC 320-C14 input connector.
The RoHS status of the VES120PS12 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the VES120PS12 is 1.
