| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Connector | |
| Output Power | |
| Polarization | |
| Power (Watts) | |
| Power Dissipation | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Tape & Reel | |
| Voltage | |
| Weight | |
| Width |

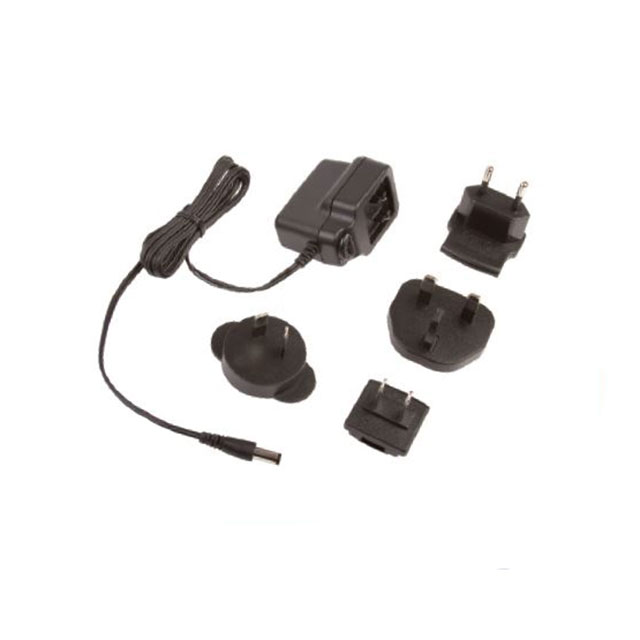

This AC/DC wall mount adapter from XP Power, part number VER18US150-JA, delivers a stable 15V output with a maximum power of 19W. Designed for international use, it operates within a wide AC input voltage range of 80V to 264V and features a high efficiency rating of Level VI.
The adapter is designed for ITE (Commercial) applications and complies with safety standard 62368-1, carrying CB approval. It includes a multi-blade input connector and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 12.0mm) with a positive center polarization. The unit is housed in a Class II, wall mount form factor.
Environmental compliance includes RoHS3 compliance and an MSL of 1. The operating temperature range is from 0°C to 60°C. The adapter comes with a 1.50m (59") cord length and has a low no-load power consumption of 100mW maximum.
The nominal output voltage is 15V DC with a maximum output current of 3.13A.
The AC input voltage range is 80V to 264V.
The operating temperature range is 0°C to 60°C.
The output connector is a barrel plug with a 2.1mm inner diameter and 5.5mm outer diameter.
The adapter meets Level VI efficiency standards.
The maximum no-load power consumption is 100mW.
