| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

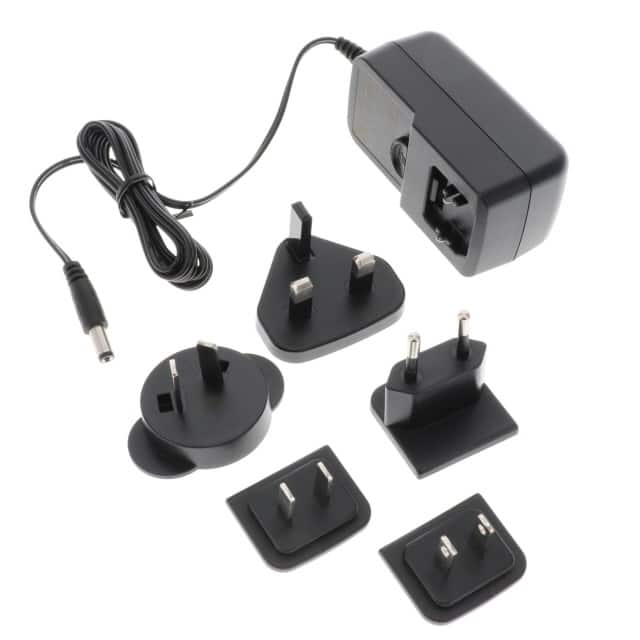

This AC/DC wall mount adapter from XP Power, part number VER18US120-JA, delivers 18 watts of power with a stable 12V output and 1.5A current. It features a Level VI efficiency rating and is suitable for international use.
The adapter operates within a temperature range of 0°C to 60°C and consumes less than 100mW at no load. Its dimensions are 90.0mm x 43.0mm x 42.7mm, with a cord length of 1.50 meters. The output connector is a standard barrel plug (2.1mm I.D. x 5.5mm O.D. x 12.0mm) with positive center polarization.
Designed for ITE (Commercial) applications, this adapter meets the Standard Safety 62368-1 and carries CB approval. It is a Class II, wall-mountable unit with a multi-blade input connector.
The input voltage is 100-240 VAC, allowing operation worldwide.
It provides 12V DC at 1.5A, with a maximum power of 18W.
It uses a 2.1mm inner diameter x 5.5mm outer diameter barrel plug with positive center polarity.
The operating temperature range is 0°C to 60°C.
It is CB certified and compliant with IEC 62368-1 safety standard.
Yes, it features a multi-blade input connector and accepts 100-240 VAC, making it suitable for international use.
It meets Level VI efficiency standards and has a no-load power consumption of less than 100mW.
