| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Isolation | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Voltage | |
| Weight | |
| Width |

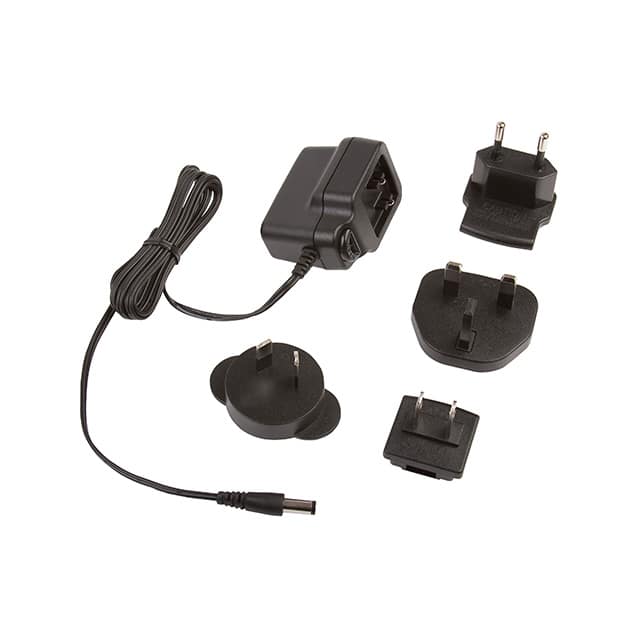

The XP Power VER05US060-JA is an AC-DC wall mount adapter from the VER05 series, designed for various applications requiring a stable 6V output. This adapter delivers up to 5W of power with a maximum output current of 830mA.
Key electrical specifications include a universal input voltage range of 90-264 VAC and a frequency range of 47-63 Hz. It boasts high efficiency, meeting Level VI energy standards, and features low no-load power consumption, typically less than 0.1W. The adapter includes continuous short circuit protection with auto-recovery.
Mechanically, the VER05US060-JA has a compact form factor with dimensions of 54.9mm x 37.0mm x 42.9mm. It features a standard 5.5mm x 2.1mm DC barrel jack output connector with a positive center polarization and a cord length of 1.50 meters. The unit is designed as a Class II, wall mount type with a multi-blade input connector.
Environmental considerations include an operating temperature range of 0°C to 60°C and an operating humidity range of 5% to 95% non-condensing. The adapter complies with RoHS3 standards.
6V nominal.
830mA
0°C to 60°C
Barrel plug, 2.1mm I.D. x 5.5mm O.D.
90-264VAC
76% (Level VI)
Yes, hiccup mode with auto recovery.
