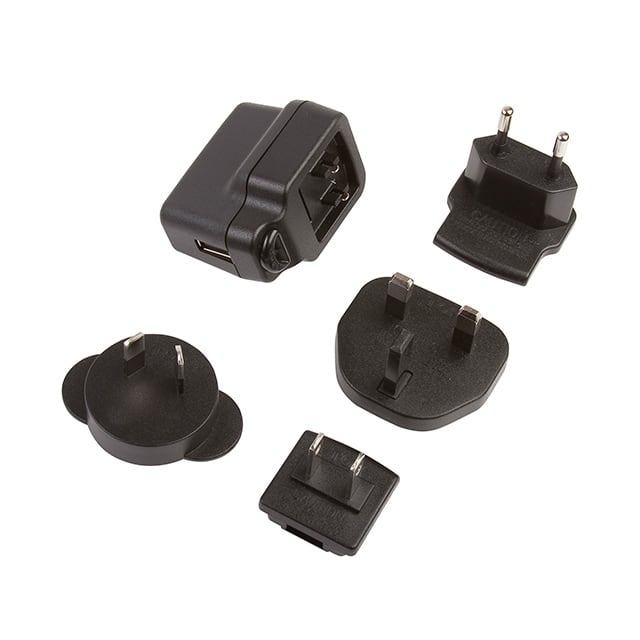

The XP Power VER05US050-BB is an AC-DC wall mount adapter from the VER05 series, delivering 5 watts of power with a 5V output voltage and 1000mA current. This adapter is designed for ITE (Commercial) applications and features a USB A receptacle output connector.
It operates with a universal input voltage range of 90-264 VAC and meets the latest Energy Efficiency Level VI standards, ensuring low no-load power consumption. The adapter offers a total regulation of 5% and a typical efficiency of 77%. Key electrical characteristics include a start-up delay of 4 seconds, a hold-up time of 8ms, and continuous short circuit protection with auto-recovery.
The unit is housed in a compact, wall-mount form factor (Class II construction) with dimensions of 37.0mm x 55.1mm x 42.9mm. It operates within a temperature range of 0°C to 60°C and has a Mean Time Between Failure (MTBF) of 100,000 hours. The adapter includes an internal T1.0A/250VAC fuse for input protection.
The VER05US050-BB provides a 5V output voltage at a maximum current of 1000mA (1A).
The power rating for the VER05US050-BB is 5 Watts.
The VER05US050-BB has an Energy Efficiency Level VI rating, with a typical efficiency of 77%.
The adapter accepts a universal input voltage range of 90-264 VAC and a frequency range of 47-63 Hz.
The operating temperature range for this adapter is 0°C to 60°C.
The VER05US050-BB features a USB A receptacle as its output connector.
