| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Isolation | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Temperature Coefficient | |
| Voltage | |
| Width |

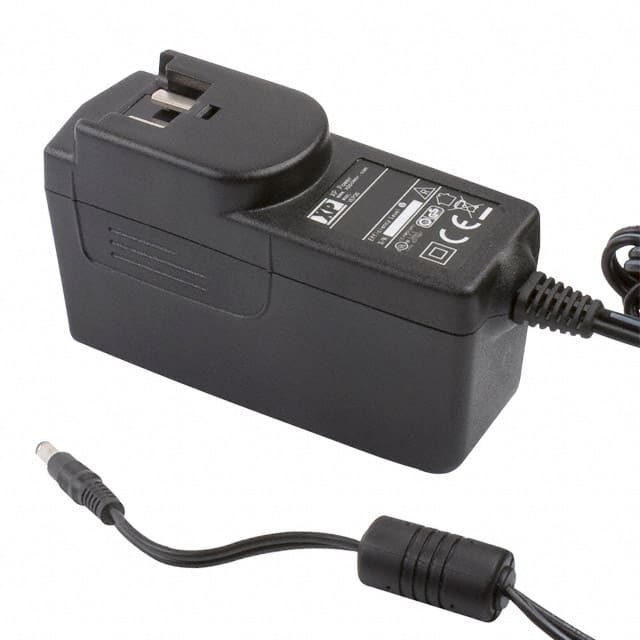

The XP Power VEP36US09 is an AC/DC power supply designed for wall mounting, featuring Class II construction. It operates with an input voltage range of 80-264 VAC and a frequency of 47-63 Hz, delivering a stable 9V output at up to 3A, for a total of 27W.
This power adapter complies with CEC2008 and EISA 2007 standards, achieving Level V energy efficiency. It is suitable for IT and Medical applications, holding approvals from agencies like CB, TUV, and UL. The unit includes a multi-blade input connector and a standard barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization.
Key electrical specifications include a maximum input current of 0.9A at 90 VAC, a typical start-up delay of 2 seconds, and a hold-up time of 5 ms. Load regulation is within ±5% and line regulation is within ±0.5%. The operating temperature range is 0°C to +40°C, with cooling provided by natural convection. The dimensions are 102.0mm x 36.0mm x 53.0mm.
The VEP36US09 provides a 9V output at 3A (27W).
The input voltage range is 80-264 VAC at 47-63 Hz.
It is approved to EN 60950-1, cUL60950-1, IEC 60950-1, EN 60601-1, cUL60601-1, and IEC 60601-1.
The operating temperature range is 0°C to +40°C with natural convection cooling.
Yes, it has trip and restart (hiccup mode) short circuit protection.
The adapter meets Level V energy efficiency standard.
