| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,100 pcs
|
1100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Body Material | |
| Housing Material | |
| SVHC Present | |
| Thread Size |

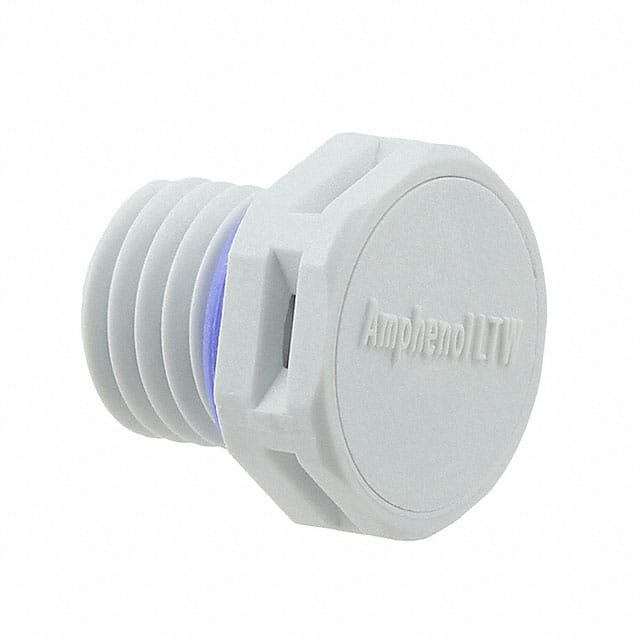

The Amphenol LTW VENT-PS1NGY-N8001 is a M12x1.5 plastic screw vent designed for enclosure pressure equalization and moisture protection. It features a gray polyamide (PA) body, a blue O-ring, and a non-oleophobic ePTFE membrane that allows air flow while blocking water and contaminants.
This vent provides a minimum air flow rate of 1000 ml/min at 70 mbar and is rated IP68/IP69K for waterproof protection. The cap and housing are made from UV-resistant black nylon. The recommended nut torque is 6.0~8.0 Kgf/cm.
The VENT-PS1NGY-N8001 is supplied without a nut and uses a M12x1.5 thread. It is suitable for use in outdoor and harsh environment enclosures requiring reliable pressure compensation and ingress protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.39 | $2.39 |
| 10+ | $2.03 | $2.03 |
| 30+ | $1.82 | $1.82 |
| 100+ | $1.68 | $1.68 |
| 250+ | $1.62 | $1.62 |
| 500+ | $1.46 | $1.46 |
| 1,000+ | $1.41 | $1.41 |
| 2,500+ | $1.32 | $1.32 |
| 5,000+ | $1.31 | $1.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The thread size is M12x1.5.
It is rated IP68/IP69K.
The minimum air flow rate is >1000 ml/min at 70 mbar.
The body is PA (Nylon), the membrane is ePTFE, and the cap and housing are UV-resistant black nylon.
No, it is supplied without a nut.
The body color is gray and the O-ring color is blue.
