| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
36 pcs
|
36 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ADC Resolution | |
| Ambient Light Range (Minimum/Maximum) | |
| Ambient Light Resolution | |
| Flicker Noise Rejection (Nominal) | |
| I2C Bus Voltage (Minimum/Maximum) | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Peak Wavelength | |
| Power Dissipation (PD) | |
| Proximity Detection | |
| Shutdown Current Consumption | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |

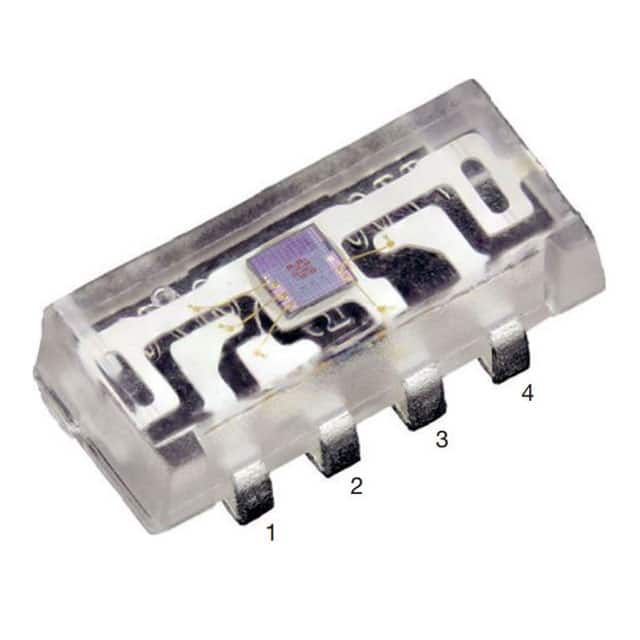

The Vishay VEML7700-TT is a high-accuracy, 16-bit digital ambient light sensor designed for applications requiring precise light level detection. It communicates via an I2C interface and operates within a supply voltage range of 2.5V to 3.6V.
This sensor features a wide dynamic range for ambient light detection, from 0 lx to approximately 140 klx, with a resolution down to 0.0042 lx/ct. It includes 100 Hz and 120 Hz flicker noise rejection and excellent temperature compensation, making it suitable for various environmental conditions.
The VEML7700-TT is available in a miniature surface-mount, side-view package measuring 6.8 mm x 2.35 mm x 3.0 mm. Its applications include backlight dimming for displays in TVs, smartphones, and PDAs, as well as industrial lighting control and optical switching in consumer, computing, and industrial devices.
Key features include a low shutdown current consumption of typically 0.5 μA and software shutdown mode control. The sensor is designed for ease of use with a standard I2C communication interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.5 V to 3.6 V.
The ambient light range is from 0 lx to about 140,000 lx.
The ambient light resolution is down to 0.0042 lx/ct.
The operating temperature range is -25°C to 85°C.
The VEML7700-TT is in a 4-SMD, J-Lead package.
