| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,079 pcs
|
1079 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Dimensions | |
| Features | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Output | |
| Resolution | |
| Resolution (Bits) | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage |

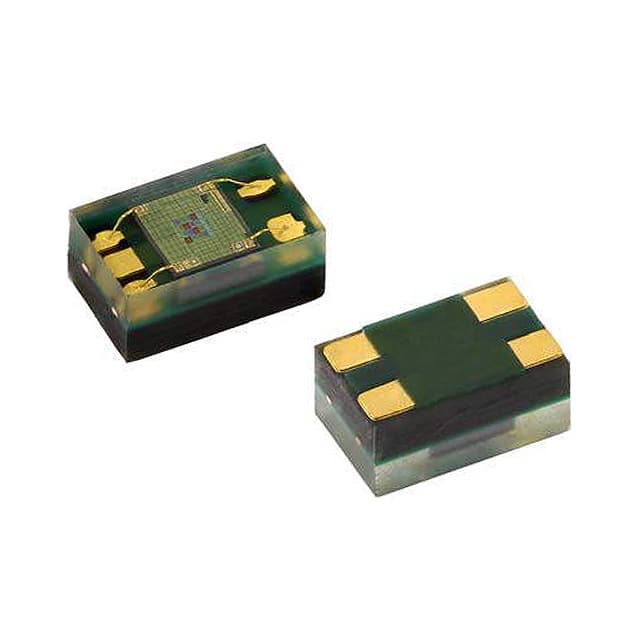

The Vishay Dale VEML6040A3OG is a surface-mount RGBW color sensor designed for applications requiring accurate ambient light detection. It incorporates photodiodes, amplifiers, and analog/digital circuits on a single CMOS chip.
This sensor utilizes Filtron™ technology to closely match human eye spectral sensitivity, providing R, G, B, and W light detection. It offers 16-bit resolution for each channel and supports selectable maximum detection ranges up to 16496 lux. The device operates over a voltage range of 2.5V to 3.6V with low power consumption, drawing only 200µA at 3.3V.
Key features include excellent temperature compensation for stable output across its -40°C to +85°C operating temperature range and immunity to fluorescent light flicker. The sensor communicates via an I2C (SMBus compatible) interface, making integration into various systems straightforward.
The VEML6040A3OG is packaged in a lead-free 4-pin OPLGA package, suitable for surface mounting. Its dimensions are 2.0 x 1.25 x 1.0 mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.5 V to 3.6 V.
The operating temperature range is -40°C to 85°C.
The sensor provides 16-bit resolution for each channel (R, G, B, W).
The VEML6040A3OG uses an I2C (SMBus compatible) interface.
The dimensions are 2.0 mm x 1.25 mm x 1.0 mm.
The package type is a 4-pin OPLGA, suitable for surface mounting.
