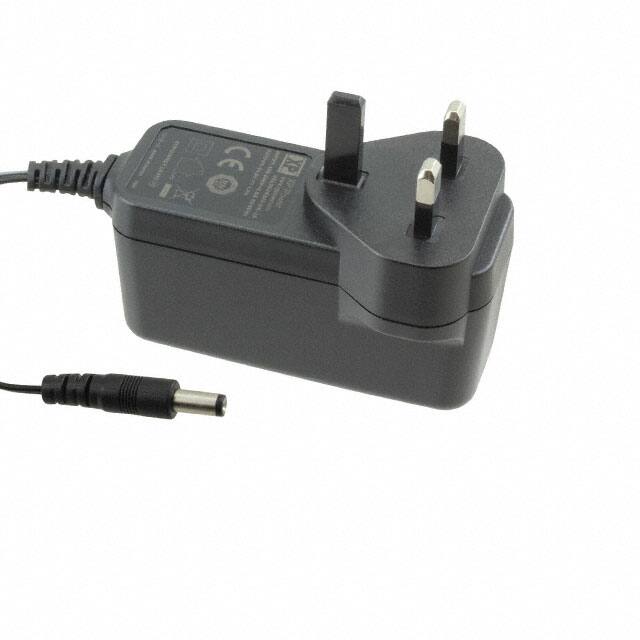

The XP Power VEL36 Series AC-DC power supply, model VEL36US240-UK-JA, is a 36 Watt wall mount adapter designed for various applications. It provides a stable 24V output with a maximum current of 1500mA.
This power supply features universal input voltage ranging from 90 to 264 VAC and operates within a frequency of 47 to 63 Hz. It boasts Energy Efficiency Level VI and European CoC Tier 2 compliance, ensuring low no-load power consumption of a maximum of 75mW. The unit has a typical efficiency of 87% and includes continuous short circuit protection with auto-recovery.
Designed with Class II construction, the VEL36US240-UK-JA has dimensions of 94.0mm x 35.0mm x 46.6mm. It utilizes a fixed blade input connector suitable for the United Kingdom and a 5.5 x 2.1 x 12mm DC jack output connector with positive center polarization. The operating temperature range is from 0°C to 60°C.
90-264 VAC.
24V.
Wall Mount (Class II).
0°C to 60°C.
1500 mA (1.5A).
87% typical.
Short circuit protection with hiccup mode and auto recovery.
