| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Class | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Isolation | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Temperature Coefficient | |
| Voltage | |
| Width |

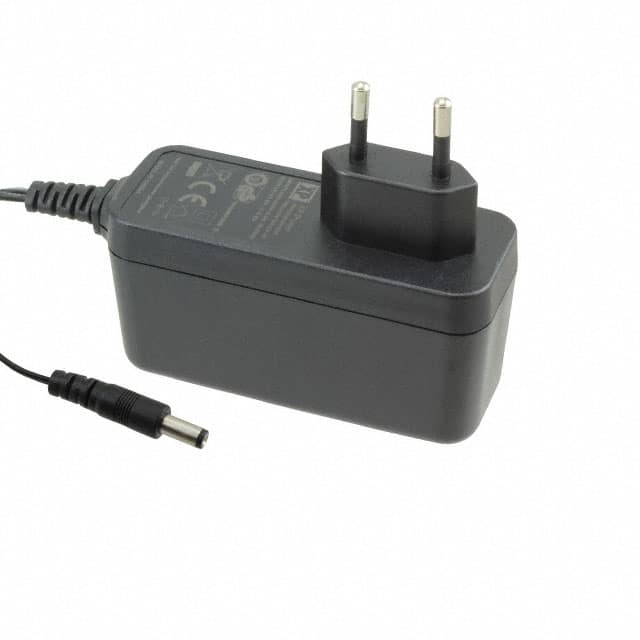

The XP Power VEL36 Series AC/DC wall mount adapter, model VEL36US240-EU-JA, delivers 36 watts of power with a 24V output. Designed for ITE (Commercial) applications, this adapter features a fixed European input connector (CEE 7/16) and a standard barrel plug output.
This unit operates within a universal input voltage range of 90-264 VAC and meets stringent energy efficiency standards, including Level VI and CoC Tier 2. It boasts a typical efficiency of 87% and a low no-load power consumption of just 75mW.
The adapter includes essential protections such as continuous short circuit protection with auto-recovery. Its compact dimensions are 94.0mm x 35.0mm x 46.6mm, making it suitable for various space-constrained designs. The Class II construction ensures safety for its intended applications.
Key electrical specifications include a total regulation of 5%, a ripple and noise level of 180mV pk-pk, and a hold-up time of 8ms at full load and 100 VAC. The operating temperature range is from 0°C to 60°C.
The output voltage is 24V.
The maximum output current is 1.5A.
The power rating is 36W.
The input voltage range is 90-264VAC.
It meets Energy Efficiency Level VI and CoC Tier 2.
The dimensions are 94.0mm x 35.0mm x 46.6mm.
The operating temperature range is 0°C to 60°C.
