| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Isolation | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Temperature Coefficient | |
| Voltage | |
| Width |

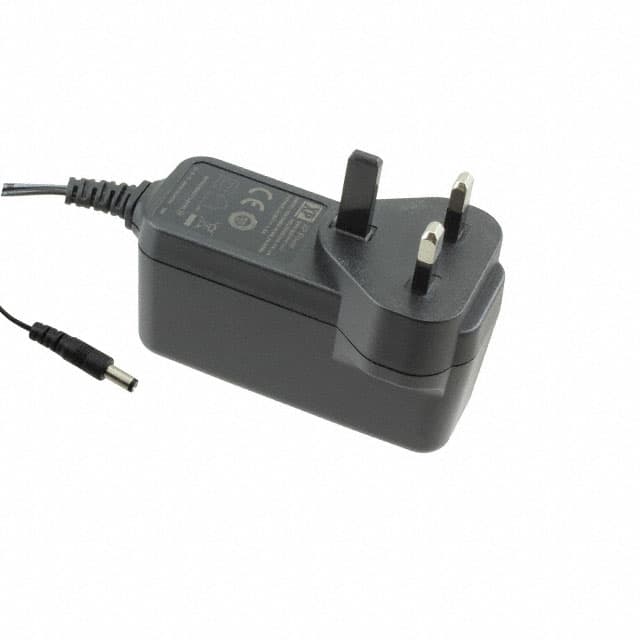

The XP Power VEL36 Series AC-DC power supply, model VEL36US120-UK-JA, delivers 36 watts of power with a 12V output voltage and a maximum current of 3A. This wall-mount adapter is designed for ITE (Commercial) applications and features a fixed UK mains connector.
Key electrical specifications include a wide input voltage range of 90-264 VAC and an input frequency of 47-63 Hz. It boasts high efficiency, rated at 87% typical, and meets Energy Efficiency Level VI and CoC Tier 2 standards. The power supply includes continuous short circuit protection with auto-recovery and an isolation rating of 3000 VAC between input and output.
Mechanical details include dimensions of 94.0mm x 35.0mm x 46.6mm and a cord length of 59 inches (1.50m). The output connector is a 5.5 x 2.1 x 12 mm DC Jack with a positive center polarization. The operating temperature range is from 0°C to 60°C. This Class II construction unit is suitable for various commercial applications requiring reliable power conversion.
The output voltage is 12V.
The operating temperature range is 0°C to 60°C.
It is a wall mount (Class II) adapter.
The input voltage range is 90-264 VAC.
It meets Level VI and CoC Tier 2 efficiency standards.
Short circuit protection with hiccup mode and auto recovery.
It has a 5.5 x 2.1 x 12 mm DC jack with positive center polarity.
