| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Isolation | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Voltage | |
| Weight | |
| Width |

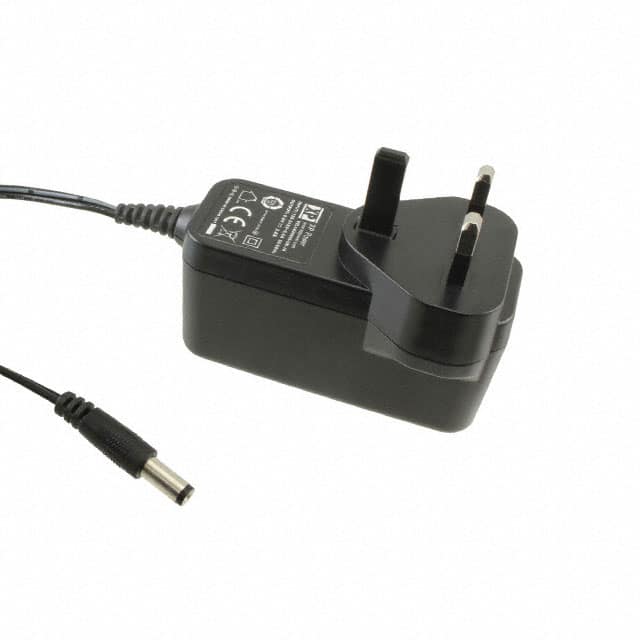

The XP Power VEL24US120-UK-JA is a versatile AC-DC power supply designed for various applications, including ITE (Commercial). It delivers a reliable 24W of output power with a fixed 12V output voltage and a maximum current of 2A.
This wall mount adapter operates with a universal input voltage range of 90-264VAC and a frequency of 47-63Hz, making it suitable for global use. It boasts high efficiency, rated at a typical 85%, and meets Energy Efficiency Level VI and European CoC Tier 2 standards. The power supply also features a low no-load input power consumption of just 75mW.
Designed for convenience and safety, the VEL24US120-UK-JA has a Class II construction and includes continuous short circuit protection with auto-recovery. Its dimensions are 90.0mm x 49.5mm x 50.0mm, and it utilizes a standard 5.5mm x 2.1mm DC barrel jack output connector with a positive center pin. The unit comes with a 1.50m cord.
The output voltage is 12V.
The maximum output power is 24W.
The input voltage range is 90-264VAC.
Yes, it meets Energy Efficiency Level VI and European CoC Tier 2 standards.
The operating temperature range is 0°C to 60°C.
It uses a 5.5mm x 2.1mm DC barrel jack connector.
