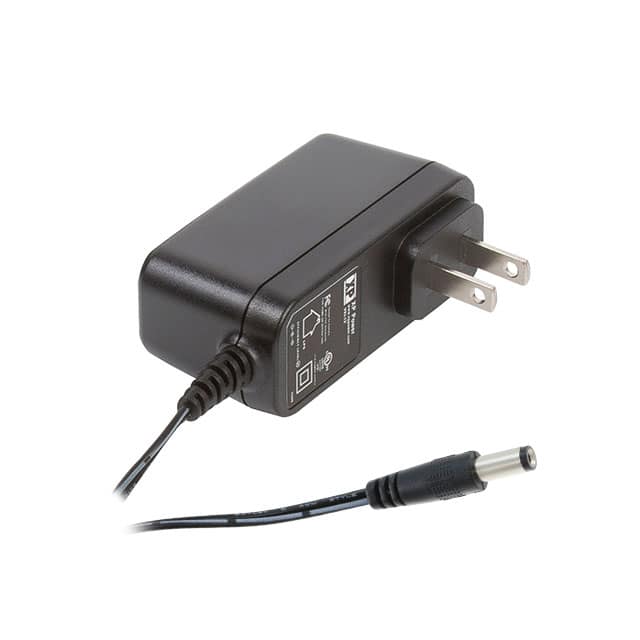

VEL12US120-US-JA The XP Power VEL12US120-US-JA is a 12W AC/DC wall mount adapter providing a 12V output at 1A. It features a NEMA 1-15P input connector and a standard barrel plug output.
Mfr Part #:

VEL12US120-US-JA

Mfr Name: XP Power
XP Power
The XP Power VEL12US120-US-JA is a 12W AC/DC wall mount adapter providing a 12V output at 1A. It features a NEMA 1-15P input connector and a standard barrel plug output.
Stock on Request

VEL12US120-US-JA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Input Connector
Input Frequency
Input Type
Input Voltage
Length
No Load Power Consumption
Operating Temperature
Output Connector
Polarization
Power (Watts)
Region Utilized
Standard Number
Storage Temperature
Temperature Coefficient
Voltage
Weight
Width
View Similar Products (0)

VEL12US120-US-JA Description

Short technical summary and product information.

The XP Power VEL12US120-US-JA is a versatile 12W AC/DC wall mount power adapter designed for commercial ITE applications. It delivers a stable 12V output with a maximum current of 1A, suitable for a wide range of electronic devices.



This adapter meets Energy Efficiency Level VI and European CoC Tier 2 standards, ensuring high active mode efficiency and low no-load power consumption, rated at a maximum of 100mW. It operates with universal input voltage from 90 to 264 VAC and features a NEMA 1-15P input connector for North American outlets.



The VEL12US120-US-JA includes essential protection features such as continuous short circuit protection with auto-recovery. Its dimensions are 76.0mm x 29.5mm x 43.87mm, making it a compact solution for various designs. The output is delivered via a standard 5.5mm x 2.1mm barrel plug with a positive center.



Key specifications include an operating temperature range of 0°C to 60°C, a hold-up time of 11ms, and an efficiency of up to 79% at full load. It is certified by CB, TUV, and UL, adhering to the 62368-1 standard.

VEL12US120-US-JA Quick Information

Product Type: AC/DC Wall Adapter
Series: VEL12
Canonical Name: XP Power VEL12 Series AC-DC Power Supply
Subcategory: Wall Mount Adapter

VEL12US120-US-JA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

VEL12US120-US-JA Features

  • 12W AC/DC wall mount adapter
  • 12V output at 1A current
  • Universal 90-264VAC input
  • Energy Efficiency Level VI compliant
  • NEMA 1-15P input, 5.5x2.1mm barrel output

VEL12US120-US-JA Applications

  • Ideal for commercial ITE devices
  • Suitable for various electronic equipment
  • Designed for reliable power delivery
  • Compact wall-mount form factor

VEL12US120-US-JA FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage and current for the VEL12US120-US-JA?

The VEL12US120-US-JA provides a 12V output voltage with a maximum output current of 1A.

What are the input voltage and frequency ranges for this adapter?

This adapter accepts a universal input voltage range of 90 to 264 VAC and a frequency range of 47 to 63 Hz.

What efficiency rating does the VEL12US120-US-JA meet?

The adapter meets Energy Efficiency Level VI and European CoC Tier 2 standards, with typical efficiencies up to 79% for the 12V model.

What type of output connector does this power supply use?

It uses a standard barrel plug with dimensions of 2.1mm inner diameter and 5.5mm outer diameter, with a length of 12.0mm.

What is the operating temperature range for the VEL12US120-US-JA?

The adapter can operate within a temperature range of 0°C to 60°C.

Does this power adapter have short circuit protection?

Yes, it features continuous short circuit protection with trip and restart (hiccup mode) and auto recovery.
