| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Weight |

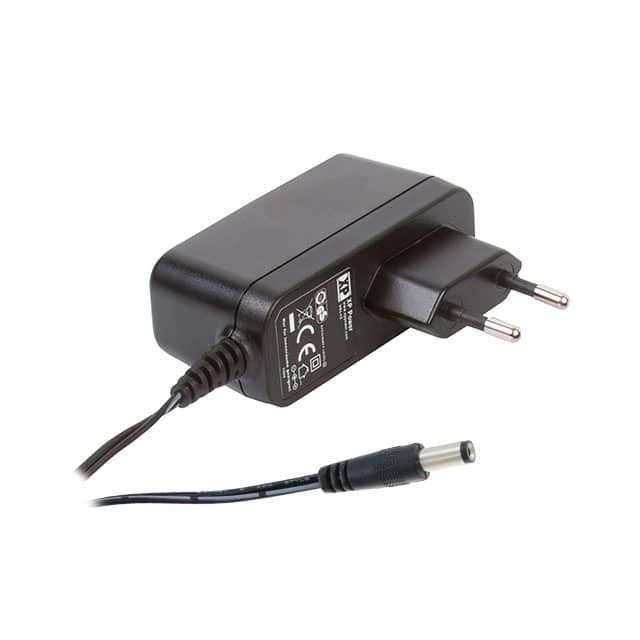

The XP Power VEL12US090-EU-JA is part of the VEL12 series of AC-DC power supplies, designed as a wall mount adapter. It provides a 9V output at up to 1.28A, delivering a total of 12W of power. This unit features universal input voltage (90-264VAC) and a fixed blade input connector for European regions.
The power supply complies with Energy Efficiency Level VI and European CoC Tier 2 standards, ensuring low no-load power consumption and high active mode efficiency. It offers a standard 5.5 x 2.1 x 12mm DC jack output connector with positive center polarization. The dimensions for the EU plug version are 76.0 x 29.5 x 39.37mm.
Designed for ITE (Commercial) applications, the VEL12US090-EU-JA includes essential protections such as continuous short circuit protection with auto-recovery. It operates within a temperature range of 0°C to 60°C and has a Mean Time Between Failure (MTBF) of 100,000 hours at 25°C.
Key electrical specifications include a total regulation of ±5% to ±10%, ripple and noise of 200mV pk-pk, and an input current of 0.3A at 100VAC. The unit is Class II construction and approved by the CB agency.
9V DC.
Wall mount Class II with fixed blade input and 5.5x2.1x12mm DC jack output.
0°C to 60°C with derating above 40°C.
90VAC to 264VAC.
Level VI and CoC Tier 2.
Continuous short circuit protection with hiccup mode and auto recovery.
3000VAC input to output.
