| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

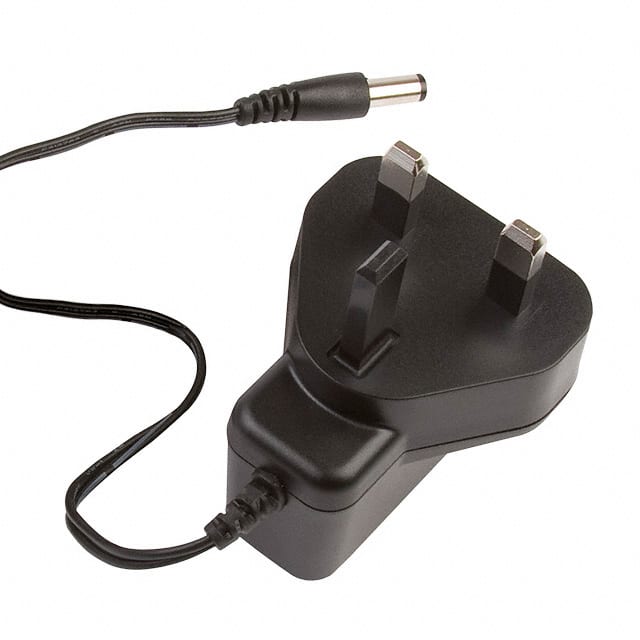

This AC/DC wall mount adapter from XP Power, part number VEL05US120-UK-JA, provides a stable 12V DC output with a maximum power of 5W. It is designed for ITE (Commercial) applications and adheres to the stringent Level VI energy efficiency requirements.
The adapter features a BS 1363 input connector suitable for UK power outlets and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 12.0mm) with positive center polarization. Its compact dimensions are 55.1mm in length, 49.5mm in width, and 42.9mm in height, making it suitable for various installations.
Operating within a temperature range of 0°C to 60°C, the VEL05US120-UK-JA boasts a low no-load power consumption of 100mW maximum. It is compliant with safety standard 62368-1 and approved by the CB agency, ensuring reliable performance and safety for electronic devices.
The unit is a Class II, wall-mount type, simplifying installation and use. The integrated cord measures 1.50 meters (59 inches) in length, offering flexibility in placement.
The adapter provides a 12V DC output voltage and a maximum current of 420mA.
This adapter has a power rating of 5W.
The adapter meets Level VI efficiency standards.
The adapter can operate between 0°C and 60°C.
It uses a BS 1363 input connector, suitable for the United Kingdom.
The adapter measures 55.1mm in length, 49.5mm in width, and 42.9mm in height.
The product is listed as RoHS3 Compliant.
