| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

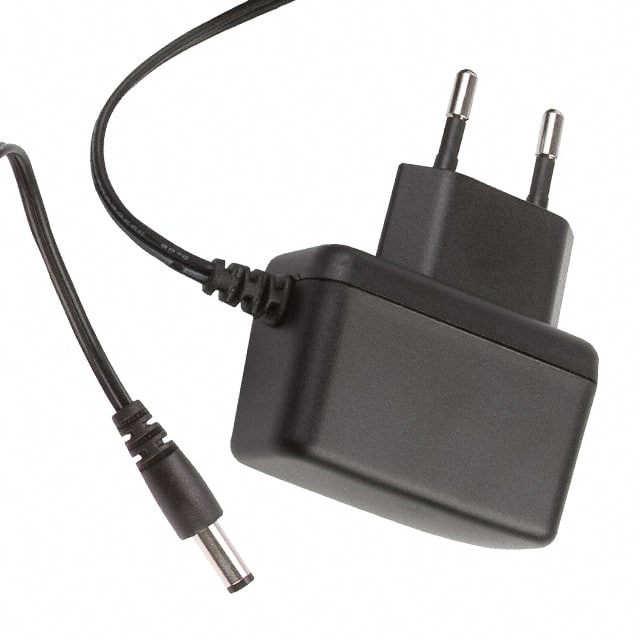

This XP Power VEL05US120-EU-JA is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 12V output at 5W, with a current rating of 420mA.
The adapter features a CEE 7/16 input connector and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 12.0mm) with positive center polarization. It operates within a temperature range of 0°C to 60°C and complies with the 62368-1 standard, carrying CB approval.
With a compact form factor measuring 55.1mm x 24.1mm x 54.0mm, this wall mount adapter (Class II) is suitable for various commercial applications. It offers Level VI efficiency and a low no-load power consumption of 100mW maximum. The cord length is 59 inches (1.50m).
Compliance includes RoHS3, REACH Unaffected, and MSL 1. The adapter is designed for European regions.
It accepts 100-240 VAC.
It provides 12 VDC at 420mA.
The included cord measures 1.50 meters (59 inches).
It uses a barrel plug with a 2.1mm inner diameter and 5.5mm outer diameter.
Yes, it is rated for ITE (Commercial) applications.
It is approved under standard 62368-1 by the CB agency.
