| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Tape & Reel | |
| Voltage | |
| Width |

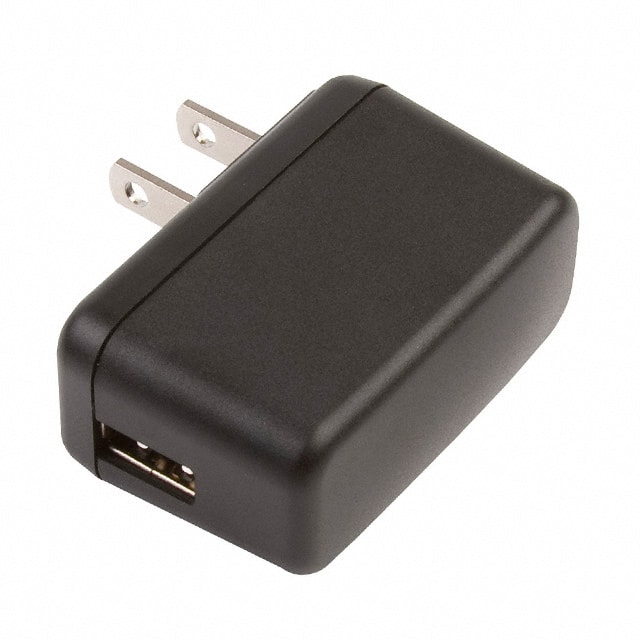

This XP Power VEL05US050-US-BB is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 5V output with a maximum current of 1A, providing a total power of 5W. The adapter features a NEMA 1-15P input connector and a USB A receptacle output.
Designed for efficiency, it meets the Level VI standard for energy consumption, with a no-load power consumption of 100mW maximum. The operating temperature range is from 0°C to 60°C. Its compact dimensions are 55.1mm in length, 24.1mm in width, and 35.5mm in height, making it suitable for various space-constrained applications.
The unit is certified by CB and TUV, adhering to the Standard Number 62368-1. It is classified as a Wall Mount (Class II) adapter with a fixed blade input type, suitable for North American regions.
The adapter provides a 5V output voltage at a maximum current of 1A.
This adapter has a power rating of 5W.
The adapter meets the Level VI efficiency standard.
The adapter can operate in temperatures ranging from 0°C to 60°C.
It features a NEMA 1-15P input connector and a USB A receptacle output.
The adapter measures 55.1mm in length, 24.1mm in width, and 35.5mm in height.
The RoHS status is listed as RoHS3 Compliant.
