| Category | |
| Manufacturer Name | |
| Applications | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Voltage | |
| Width |

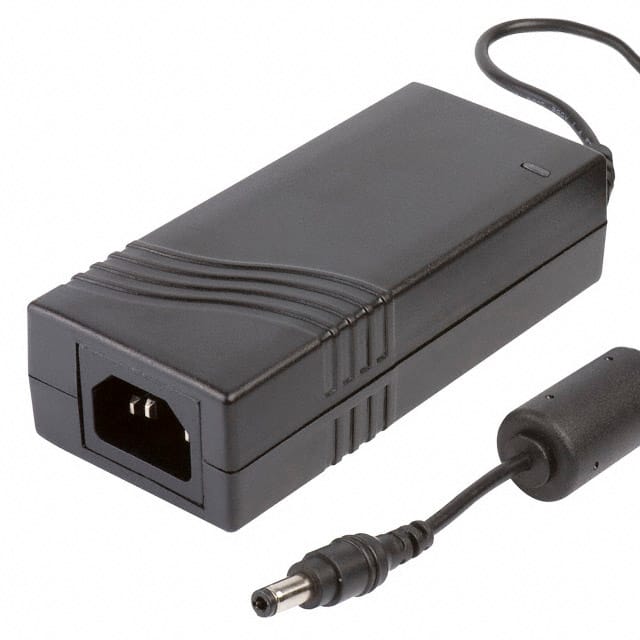

The XP Power VEH60US24 is a versatile 60W AC/DC desktop power supply designed for ITE (Commercial) applications. It provides a stable 24V output at 2.5A, ensuring reliable power delivery.
This adapter operates with a wide input voltage range of 90-264 VAC and meets Level V energy efficiency requirements, minimizing energy consumption. It features a compact desktop form factor (Class I) with dimensions of 117.4mm x 53.0mm x 32.0mm and utilizes an IEC 320-C14 input connector.
The VEH60US24 includes essential protections such as overload and short circuit protection with auto-recovery. It is designed for international use and complies with various EMC and safety standards, including EN55022 Level B, EN61000-3-2 Class A, and IEC60950-1.
Key electrical specifications include a hold-up time of 8ms minimum, a start-up delay of 3s maximum, and a load regulation of ±5% maximum. The output connector is a standard Barrel Plug (2.5mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization.
90-264VAC.
0°C to +60°C with derating above 40°C.
117.4mm x 53.0mm x 32.0mm.
Barrel plug, 2.5mm ID x 5.5mm OD x 11.0mm, positive center.
IEC60950-1, EN60950-1, UL/cUL60950-1, CCC qualified, and approved as a Limited Power Source.
87% average efficiency, compliant with Level V energy efficiency standards.
Yes, continuous hiccup/trip and restart mode with auto recovery.
