| Category | |
| Manufacturer Name | |
| Applications | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Width |

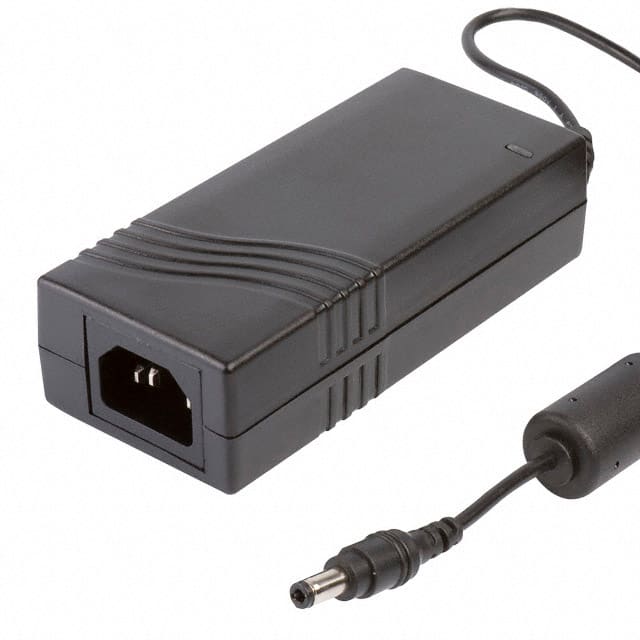

The XP Power VEH40US05 is an AC-DC desktop power adapter designed for ITE (Commercial) applications. It provides a 5VDC output at up to 25W of power, with a maximum output current of 3.00A. The adapter operates with a wide input voltage range of 90-264 VAC and features an input frequency of 47-63 Hz.
Key features include Level V energy efficiency, ensuring reduced power consumption. The input connector is an IEC 320-C14, and the output connector is a barrel plug with 2.5mm ID and 5.5mm OD. The dimensions are 107.0mm x 47.0mm x 30.1mm.
This power supply is built with safety and reliability in mind, featuring overcurrent protection, short circuit protection with auto-recovery, and compliance with various EMC and safety standards including EN60950-1 and UL/cUL60950-1. It operates within a temperature range of 0°C to 60°C.
90-264 VAC.
5 VDC.
0°C to 60°C.
87% typical.
Overload protection at 110-150% and short circuit protection with hiccup mode autorecovery.
EN60950-1 and UL/cUL60950-1.
107.0 x 47.0 x 30.1 mm.
