| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Isolation | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Width |

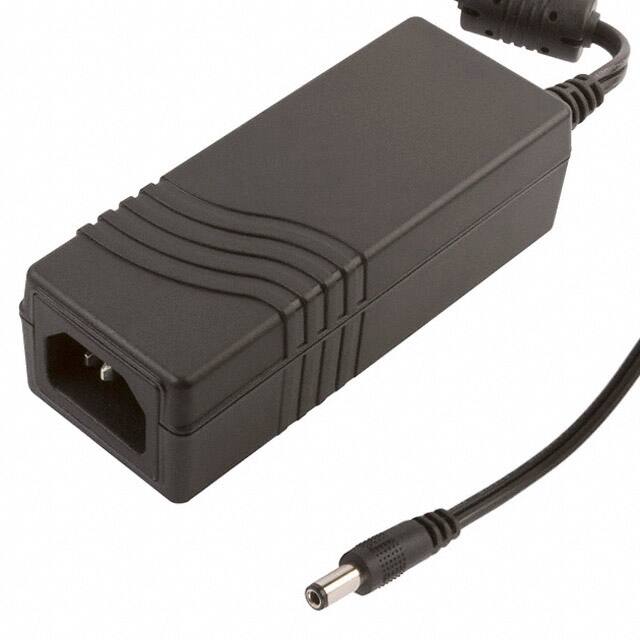

The XP Power VEH20US15 is a 20W AC-DC power supply designed for ITE (Commercial) applications. It features a 15V output voltage with a current rating of 1.33A and a total regulation of 5%. The unit operates with an input voltage range of 90-264 VAC and meets Level V energy efficiency standards.
Key electrical specifications include a typical efficiency of 87%, an inrush current of 45A/90A, and a hold-up time of 5ms minimum. For protection, it incorporates overload and short circuit protection with trip and restart functionality. The power supply operates within a temperature range of 0°C to 60°C and is convection-cooled.
Mechanically, the VEH20US15 has compact dimensions of 99.0mm x 42.0mm x 31.0mm. It features an IEC 320-C14 input connector and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 11.0mm) with a positive center polarization. The unit is designed as a desktop adapter, Class I.
Compliance includes EN55022 Class B emissions, EN61000-3-2 Class A harmonic current, and various immunity standards such as ESD, Radiated Immunity, EFT/Burst, Surge, and Magnetic Field. Safety approvals include EN60950-1 and UL/cUL60950-1.
The VEH20US15 has an output voltage of 15VDC and a maximum output current of 1.33A.
The input voltage range is 90-264 VAC.
The power rating is 20W.
The operating temperature range is 0°C to 60°C.
Yes, it meets Level V energy efficiency standards.
It uses an IEC 320-C14 input connector.
The dimensions are 99.0mm x 42.0mm x 31.0mm.
