VECANA01 The Texas Instruments VECANA01 is a 12-bit Analog Front End (AFE) IC with 10 differential inputs. It offers a sampling rate of 78ksps and an SPI serial interface.
Mfr Part #:

VECANA01

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments VECANA01 is a 12-bit Analog Front End (AFE) IC with 10 differential inputs. It offers a sampling rate of 78ksps and an SPI serial interface.
✓ Total Stock: 3,600 pcs
$ Price Range: $9.84

VECANA01 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,600 pcs
On Request
3600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

VECANA01 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channels
Interface
Lead Spacing
Mounting Type
Number of Bits
Number of Channels
Power (Watts)
Resolution
Storage Temperature
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

VECANA01 Description

Short technical summary and product information.

The VECANA01 from Texas Instruments is a versatile Analog Front End (AFE) integrated circuit designed for data acquisition applications. This device features three 12-bit analog-to-digital converters (ADCs) preceded by five simultaneously operating sample-hold amplifiers and multiplexers for 10 differential inputs. The ADCs provide simultaneous serial outputs for high-speed data transfer and processing.



Key electrical specifications include a 12-bit resolution and a maximum sampling rate of 78ksps. The VECANA01 supports a dual supply voltage range of 4.75V to 5.25V, typically operating at 5V. It also includes a programmable gain amplifier with selectable gains of 1.0V/V, 1.25V/V, 2.5V/V, and 5.0V/V.

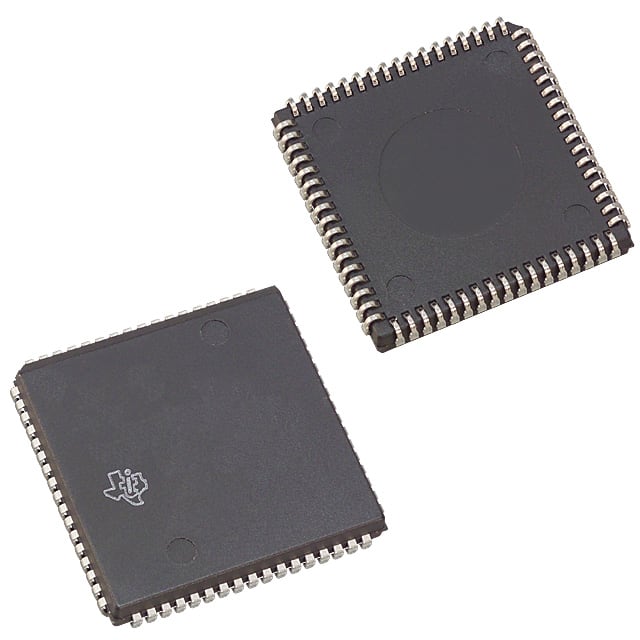

Designed for surface mounting, the VECANA01 is available in a 68-pin PLCC package. It operates within a temperature range of -40°C to 85°C. The device offers a power dissipation of 225mW (maximum) and 825mW (typical).



This AFE is suitable for applications requiring precise analog signal conditioning and digitization, such as industrial control systems, medical instrumentation, and data logging.

VECANA01 Quick Information

Product Type: Analog Front End (AFE)
Canonical Name: 12-Bit 10-Channel Analog Front End
Subcategory: AFE

VECANA01 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

VECANA01 Estimated Pricing

Qty Low High
1+ $9.84 $9.84

Estimated market price range - modelled values for guidance only, not live distributor offers.

VECANA01 Features

  • Three 12-bit ADCs with 10 differential inputs.
  • Simultaneous sample-hold amplifiers included.
  • Programmable gain amplifier with multiple settings.
  • High-speed SPI serial data output.
  • Surface mount 68-pin PLCC package.

VECANA01 Applications

  • Ideal for data acquisition systems.
  • Suitable for industrial control.
  • Used in medical instrumentation.
  • Applicable for signal conditioning.

VECANA01 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resolution of the VECANA01 Analog Front End?

The VECANA01 has a resolution of 12 bits.

How many channels does the VECANA01 support?

The VECANA01 supports 10 differential input channels.

What is the operating voltage range for the VECANA01?

The VECANA01 operates with a dual supply voltage between 4.75V and 5.25V, typically 5V.

What is the maximum sampling rate of the VECANA01?

The maximum sampling rate for the VECANA01 is 78ksps.

What type of package is the VECANA01 supplied in?

The VECANA01 is supplied in a 68-pin PLCC (24.23x24.23) or 68-LCC (J-Lead) package.

What are the operating temperature limits for the VECANA01?

The VECANA01 operates between -40°C and 85°C.
