| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Diameter | |
| Capacitance @ Frequency | |
| Current | |
| Energy | |
| Lead Diameter | |
| Lead Spacing | |
| Lead Style | |
| Maximum AC Volts | |
| Maximum DC Volts | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Response Time | |
| Storage Temperature | |
| Tape & Reel | |
| Varistor Voltage (Max) | |
| Varistor Voltage (Min) | |
| Varistor Voltage (Typ) | |
| Voltage Coefficient of Temperature | |
| Voltage Proof |

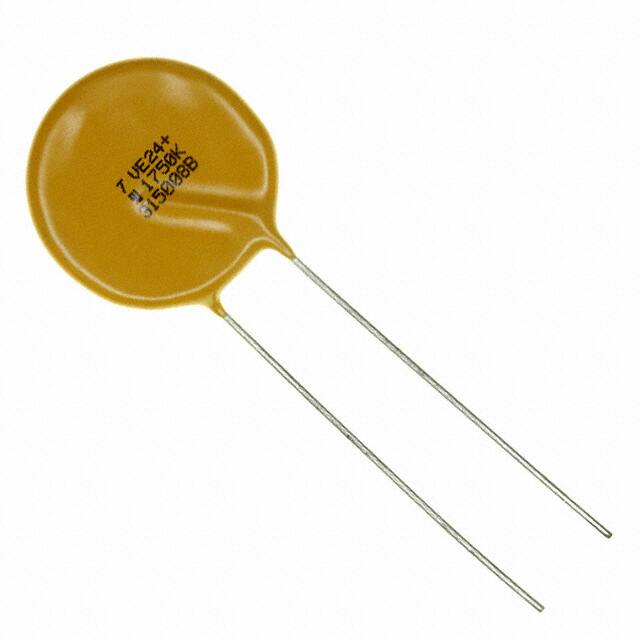

The VE24P01750K is a radial lead metal oxide varistor (MOV) from Kyocera AVX, part of the P Series designed for heavy-duty AC power network applications. It offers a typical varistor voltage of 270V (measured at 1 mA DC) with a minimum of 243V and maximum of 297V. The device can handle maximum AC voltages up to 175V RMS and maximum DC voltages up to 225V, making it suitable for overvoltage protection in 120V-175V AC line environments.
Electrical performance includes a maximum surge current capability of 10kA (8/20 µs waveform) and an energy rating of 190J (10/1000 µs). The varistor responds to overvoltage events in less than 25 ns, with a typical capacitance of 2000 pF at 1 kHz. Operating temperature range covers -40°C to +125°C, with a voltage temperature coefficient of less than 0.09%/°C.
The VE24P01750K is housed in a 24mm diameter disc package with 1.0mm diameter leads spaced at 7.62mm. It is designed for through-hole mounting and is intended for automatic insertion equipment per the datasheet. This varistor provides robust protection for AC line transient suppression applications.
The typical varistor voltage is 270V at 1 mA DC, with a minimum of 243V and a maximum of 297V.
The maximum surge current rating is 10 kA (8/20 µs waveform).
The energy absorption is 190 J (10/1000 µs waveform).
The operating temperature range is -40°C to +125°C (ambient).
The response time is less than 25 ns.
It comes in a Disc 24mm through-hole package with 7.62mm lead spacing and 1.0mm lead diameter.
The maximum AC voltage is 175 V RMS and the maximum DC voltage is 225 V.
