| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,840 pcs
|
4840 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Frequency | |
| Current | |
| Energy | |
| Leakage Current | |
| Maximum AC Volts | |
| Maximum DC Volts | |
| Medical Grade | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Standard Package Quantity | |
| Tape & Reel | |
| Termination Finish | |
| Termination Style | |
| Varistor Voltage (Min) |

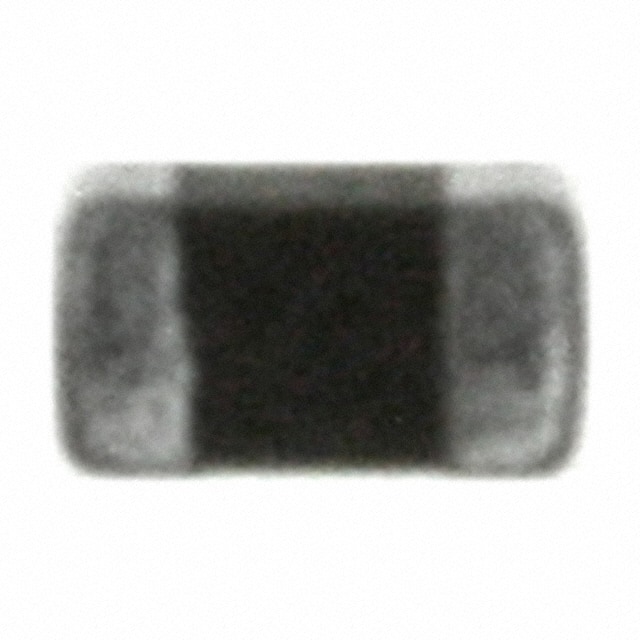

The VCUG040030L1WP is a surface mount varistor from the UltraGuard series by Kyocera AVX. It provides bi-directional transient voltage suppression with ultra-low leakage current of 1 µA maximum. This component is designed for high-speed circuits, battery-operated devices, and low-voltage power conversion applications.
Key electrical specifications include a minimum varistor voltage of 6.8 V, maximum DC voltage of 3 V, maximum AC voltage of 2.3 V, and a peak current handling capability of 20 A. The capacitance at 1 MHz is 175 pF, and the energy absorption rating is 0.05 J. It operates over a temperature range of -55°C to +125°C.
The varistor is housed in a 0402 (1005 metric) package with Ni/Sn plated terminations for reliable solderability. It is supplied in tape and reel packaging with a standard quantity of 10,000 pieces. The component is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 10,000+ | $0.16 | $0.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak current rating is 20 A.
The package size is 0402 (1005 metric).
The operating temperature range is -55°C to +125°C.
The capacitance at 1 MHz is 175 pF.
The minimum varistor voltage is 6.8 V.
The maximum leakage current is 1 µA.
The energy rating is 0.05 J.
