| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

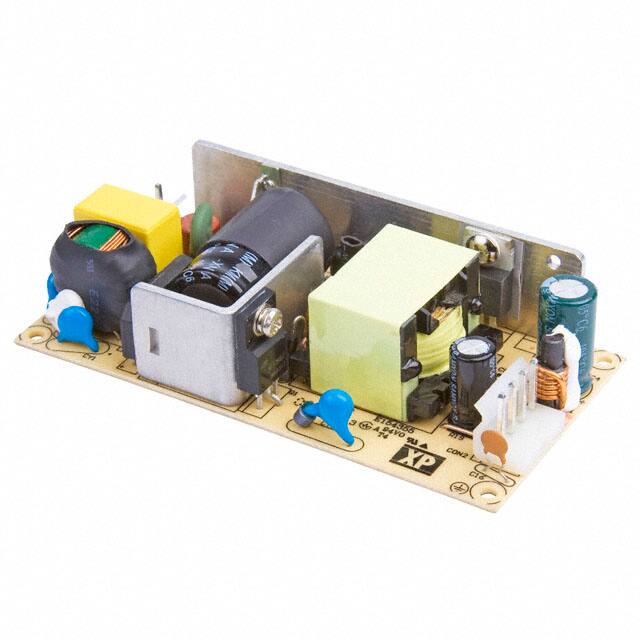

The XP Power VCT60US15 is a 60-watt AC/DC converter from the VCT60 series, delivering a nominal 15V output at up to 4A. It accepts a universal input of 85-264 VAC at 47-63 Hz, making it suitable for global applications. The converter achieves 87% efficiency and consumes less than 0.5W under no-load conditions.
This open-frame, chassis-mount unit measures 101.6mm x 50.8mm x 21.6mm and is cooled by natural convection. It operates over a -10°C to +70°C temperature range with derating above 50°C. Electrical protections include overvoltage, overload (133-166%), and hiccup-mode short circuit protection. The output features ±2% initial set accuracy, ±0.5% line regulation, and ±1.0% load regulation.
The VCT60US15 meets EN55032 Level B conducted and radiated emissions and complies with EN61000-4-x immunity standards. Safety approvals include UL60950-1, IEC60950-1, EN60950-1, UL62368-1, EN62368-1, and IEC62368-1, with CE and UKCA marking.
The VCT60US15 provides a nominal 15V output at a maximum current of 4A, delivering 60W of power.
The input voltage range is 85-264 VAC at 47-63 Hz.
The operating temperature range is -10°C to +70°C with derating above 50°C.
It has safety approvals including UL60950-1, IEC60950-1, EN60950-1, UL62368-1, EN62368-1, IEC62368-1, CE, and UKCA.
The efficiency is 87%.
It uses chassis mount and comes in an open frame package.
