| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Input Frequency | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage |

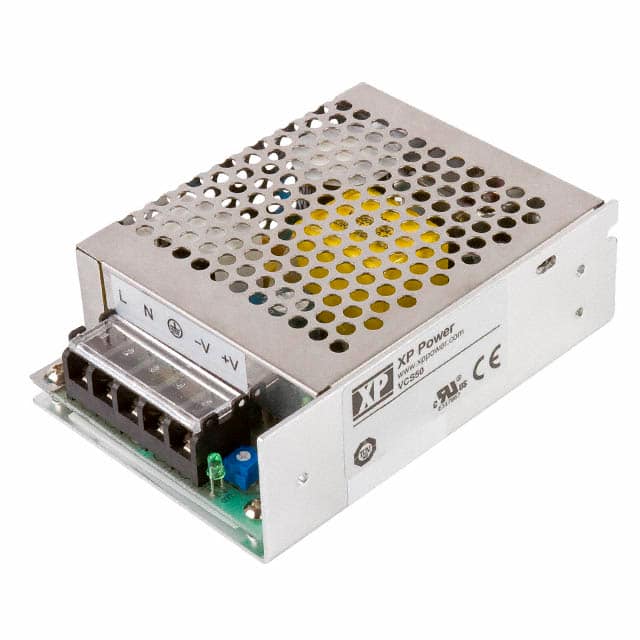

The XP Power VCS50US48 is an enclosed AC/DC converter designed for industrial applications. It delivers 50W of power with a single 48V output at 1.05A.
Key electrical specifications include a wide input voltage range of 85-264 VAC, an efficiency of 88%, and low no-load input power of less than 0.5W. The converter offers adjustable output voltage with a tolerance of ±10.0% and features comprehensive protection including overvoltage, overload, and short circuit protection.
Designed for reliability, it operates within a temperature range of -25°C to +70°C and boasts an MTBF of over 500 kHrs. The unit meets stringent EMC standards, including EN55032 Class B emissions, and is safety certified to standards like IEC60950-1 and EN62368-1.
With its chassis mount type and robust features, the VCS50US48 is suitable for various ITE (Commercial) applications requiring a dependable power solution.
85-264 VAC (47-63 Hz) or 127-370 VDC.
-25°C to +70°C with derating.
IEC60950-1, CSA C22.2 No.60950-1-03, UL60950-1, TUV EN60950-1, UL62368-1, EN62368-1, IEC62368-1, CE, UKCA.
48V at 1.05A (50W).
88% typical.
110.5 x 78.0 x 35.0 mm (4.35 x 3.07 x 1.38 inches).
