| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Input Voltage | |
| Isolation | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage |

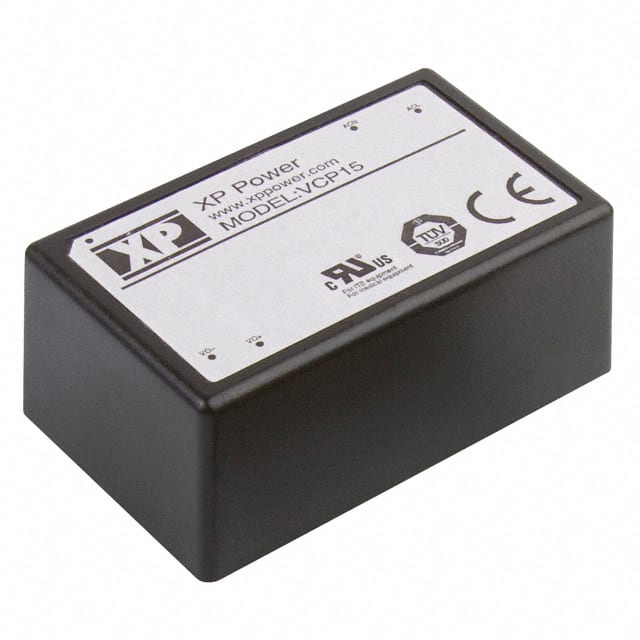

The XP Power VCP15 Series, model VCP15US05-E, is an AC/DC converter designed for board mounting. It delivers a stable 5V output voltage with a maximum power of 15W and an output current of 2.00A. This converter operates with an efficiency of 74% and features a universal input voltage range of 90-264 VAC.
The VCP15US05-E is built for reliability, offering features such as overvoltage protection, overload protection with auto-recovery, and short circuit protection in a hiccup mode. It operates within a temperature range of 0°C to 70°C with derating and is cooled by natural convection.
Designed for various applications, including ITE (Commercial) and Medical, this converter meets stringent safety and EMC standards, including EN55032 Level B emissions and EN61000-4 immunity tests. It is housed in a 5-DIP Module package and utilizes through-hole mounting.
Key electrical specifications include a low no-load input power of less than 0.3W, a start-up delay of 2s max, and a hold-up time of 5ms typical. The isolation rating is 4000 VAC from input to output, and it boasts a typical MTBF of 250 kHrs.
The output voltage is 5.0 V.
The maximum output power is 15 W.
The input voltage range is 90-264 VAC.
The efficiency is 74%.
The operating temperature range is 0 °C to +70 °C, with derating from 50 °C.
It complies with EN60950-1, cUL60950-1, IEC60950-1, EN60601-1, cUL60601-1, IEC60601-1, EN62368-1, and IEC62368-1.
