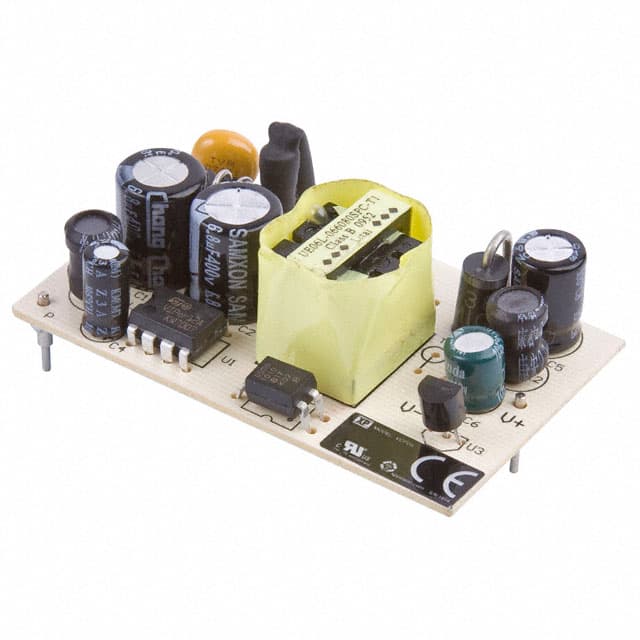

The XP Power VCP05US05 is an AC/DC converter offering a 5W output power and a 5V output voltage. It is designed for PCB mounting with a Through Hole package type.
This converter features a universal AC input range of 90-264 VAC and operates with an efficiency of 69%. It includes protections such as overload and short circuit protection (hiccup mode). The operating temperature range is 0°C to 70°C with derating.
Key features include EN55032 Class B emissions compliance, low no-load input power (<0.3 W), and a compact size of 58.5mm x 35.5mm x 23.0mm. It is suitable for ITE (Commercial) applications and meets various safety standards including EN60950-1 and EN62368-1.
With its robust design and comprehensive protections, the VCP05US05 is a reliable choice for power supply applications requiring a stable 5V output from an AC source.
The XP Power VCP05US05 provides a nominal output voltage of 5V.
The VCP05US05 has a maximum output power of 5W.
The VCP05US05 accepts a universal input voltage range of 90 to 264 VAC.
The VCP05US05 uses Through Hole mounting.
The operating temperature range for the VCP05US05 is 0°C to 70°C, with derating applied from 50°C.
Yes, the VCP05US05 meets EN55032 Class B emissions standards for conducted and radiated emissions.
