| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Current | |
| Daylight Blocking Filter Integrated | |
| Detector Type | |
| Dimensions | |
| Emitter Wavelength | |
| Mounting Type | |
| Output Type | |
| Response Time | |
| Sensing Distance | |
| Sensing Method | |
| Tape & Reel | |
| Tape and Reel | |
| Thermal Resistance Junction-to-Ambient | |
| Total Power Dissipation | |
| Voltage |

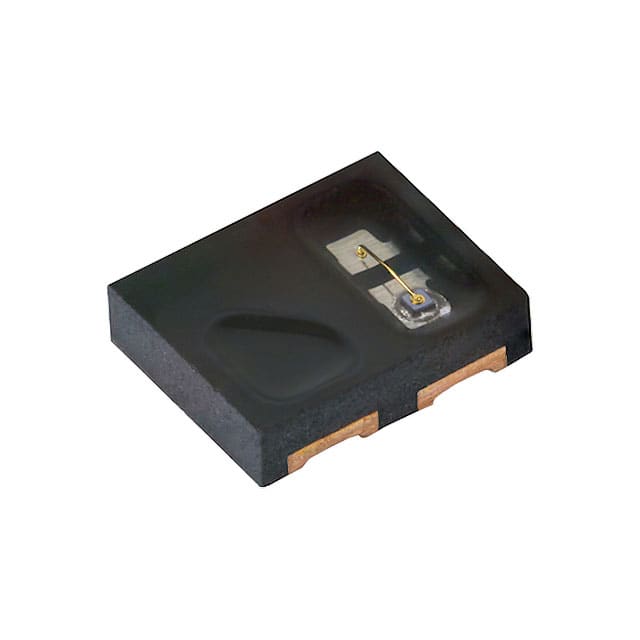

The Vishay VCNT2025X01 is a compact reflective optical sensor designed for various detection applications. It features a phototransistor detector and an infrared emitter with a wavelength of 940 nm. The sensor is housed in a miniature 4-SMD, No Lead package, suitable for surface mounting.
Key electrical characteristics include a maximum forward current of 65 mA and a collector-emitter breakdown voltage of 20 V. The sensing distance ranges from 0.30 mm to 4.50 mm, with a response time of 10µs and 15µs. A built-in daylight blocking filter enhances the signal-to-noise ratio by suppressing ambient light.
This sensor is AEC-Q101 qualified, indicating its suitability for automotive applications. Its construction allows for a close proximity detection of reflected infrared light, making it ideal for position sensing, optical switches, and object detection tasks in devices like printers and copy machines.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Vishay VCNT2025X01 optical sensor has a phototransistor output.
The VCNT2025X01 sensor uses a reflective sensing method.
The sensing distance range for the VCNT2025X01 is 0.012" to 0.177" (0.30mm to 4.50mm).
The operating infrared wavelength of the VCNT2025X01 sensor is 940 nm.
The maximum forward current for the VCNT2025X01 is 65 mA.
The dimensions of the VCNT2025X01 sensor are 2.5 mm x 2 mm x 0.6 mm.
Yes, the VCNT2025X01 sensor is AEC-Q101 qualified.
