| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

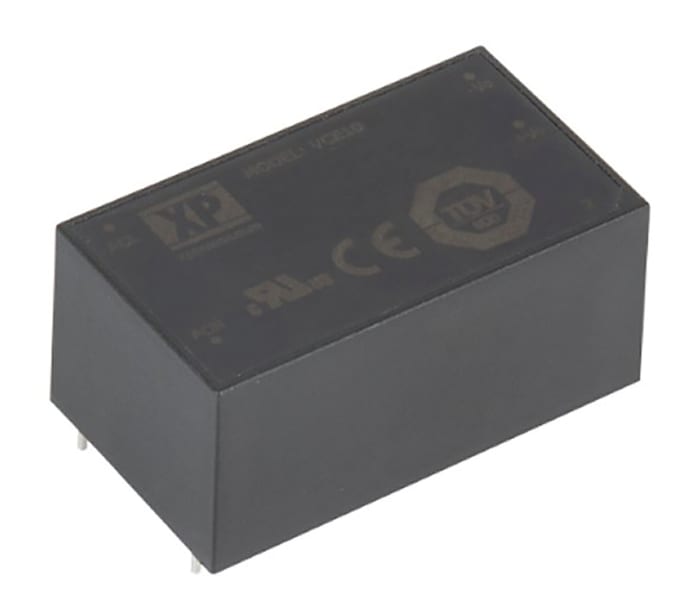

The XP Power VCE10US24 is an AC-DC power supply designed for low-cost ITE, industrial, and domestic applications. It features a single output of 24V dc with a maximum current of 420mA, delivering a total power of 10W.
This converter operates with a wide input voltage range from 85V ac to 305V ac and boasts an efficiency of 80%. It is designed for PCB mounting and comes in an encapsulated module.
The VCE10US24 operates within a temperature range of -25°C to 70°C, with derating. Its dimensions are 50.8mm in length, 29.2mm in width, and 23.1mm in height. The unit is compliant with standards such as EN 62368-1 and UL 62368-1.
The output voltage is 24V dc.
The maximum output current is 420mA.
The power rating is 10W.
The input voltage range is 85V ac to 305V ac.
The operating temperature range is -25°C to 70°C (With Derating).
The dimensions are 50.8mm in length, 29.2mm in width, and 23.1mm in height.
It complies with EN 62368-1, IEC 60335-1, IEC 60950-1, IEC 62368-1, UL 62368-1, and EN 60335-1.
