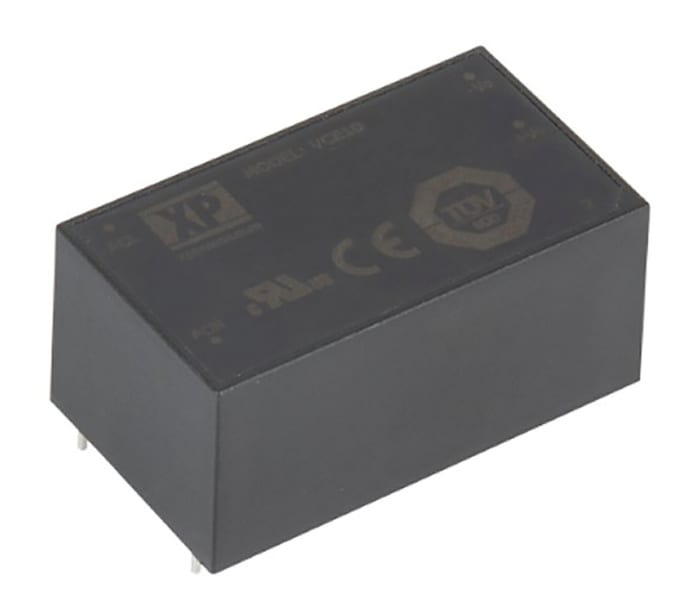

The XP Power VCE10US03 is an AC/DC converter from the VCE10 series, designed for low-cost ITE, industrial, and domestic applications. This model offers a single output of 3.3V dc with a maximum current of 2.4A, providing a total power of 8W.
Key electrical specifications include an input voltage range of 85V ac to 305V ac and an efficiency of 80%. The converter operates within a temperature range of -25°C to 70°C with derating.
Designed for easy integration, the VCE10US03 features a Through Hole mounting type and comes in a 4-DIP Module package. Its compact dimensions are 50.8mm in length, 29.2mm in width, and 23.1mm in depth.
This series benefits system designers with its Class II isolation and low input power consumption at no load (<0.3 W). It is suitable for applications requiring reliable power conversion in various environments.
85-305VAC.
3.3V DC.
2.4A.
8W.
-25°C to 70°C with derating.
4-DIP Module, Through Hole mounting.
80%.
