| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Package / Case | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Weight | |
| Width |

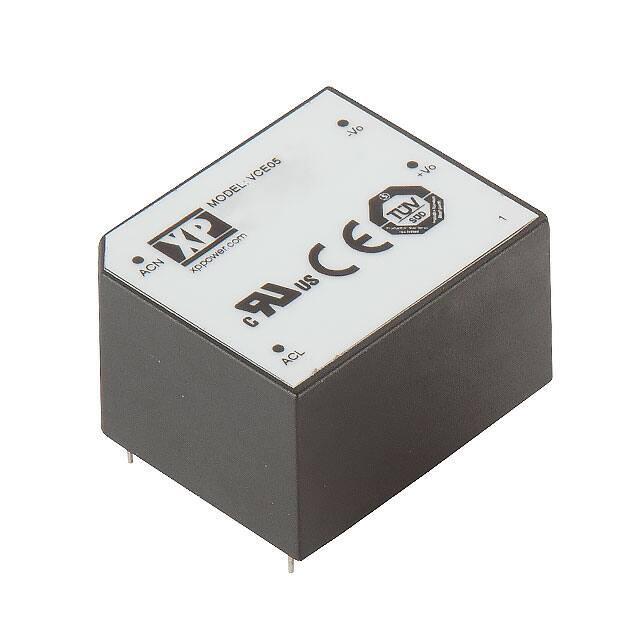

The XP Power VCE05US09 is a compact AC-DC power supply designed for low-cost ITE and industrial applications. This series offers single outputs ranging from 3.3V to 48VDC, with this specific model providing 9VDC at 550mA for a total of 5W of output power.
Key electrical specifications include a wide input voltage range of 85 to 264 VAC and an input frequency of 47 to 63 Hz. The unit boasts a typical efficiency of 78% and features overload and overvoltage protection. It operates within a temperature range of -25°C to 70°C with derating.
Designed for easy integration, the VCE05US09 features a through-hole mounting type and comes in a 4-DIP module package. It meets safety standards such as IEC 62368-1 and is classified as Class II isolation. The power supply also offers features like <0.3W no-load input power and peak load capability.
This series is suitable for various applications including IoT, Industrial Electronics, and Instrumentation, benefiting system designers with its compact size and world-wide safety approvals.
The VCE05US09 provides a 9VDC output voltage.
The maximum output current for the VCE05US09 is 550mA.
The input voltage range is 85 to 264 VAC.
The VCE05US09 is mounted using the through-hole method.
The operating temperature range is -25°C to 70°C with derating.
Yes, the RoHS status is RoHS3 Compliant.
