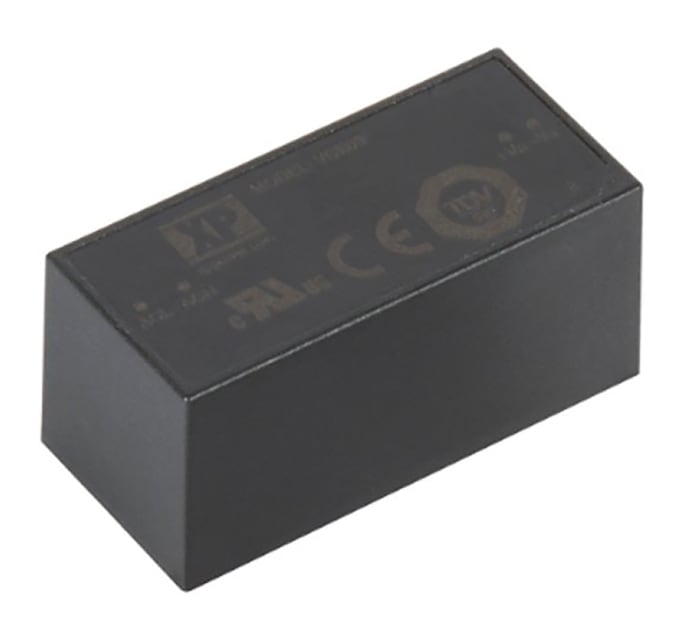

The XP Power VCE03US09 is a compact AC-DC converter designed for low-cost ITE industrial and domestic applications. It offers a single 9V dc output with a 333mA current rating, delivering a total power of 3W. The converter operates across a wide input voltage range of 85 to 305V ac, providing flexibility for various power sources.
This model features an encapsulated package suitable for PCB mounting, facilitating easy integration into system designs. With an efficiency of 80%, it operates within a temperature range of -25°C to +70°C. The VCE03 series is known for its ultra-compact SIL package and Class II isolation, making it a beneficial component for system designers.
Key specifications include a 3W power rating, 9V dc output voltage, and 333mA output current. The input voltage range is 85-305V ac. Dimensions are 40.6mm in length, 19.1mm in width, and 19.1mm in height. The operating temperature range is -25°C to +70°C. It complies with standard 62368-1 and is approved by CB, TUV, and UL agencies.
The output voltage is 9V dc.
The output current is 333mA.
The input voltage range is 85-305V ac.
The power rating is 3W.
The operating temperature range is -25°C to +70°C with derating.
The package type is a 4-DIP encapsulated module for through-hole PCB mounting.
It has CB, TUV, and UL safety approvals.
