| Category | |
| Manufacturer Name | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Type | |
| Width |

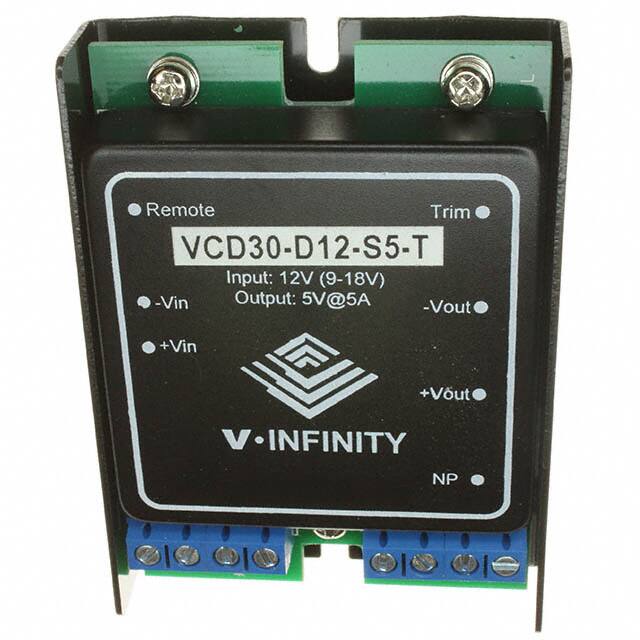

The VCD30-D12-S5-T from CUI Inc. is an enclosed DC-DC converter designed for chassis mounting. It provides a single 5VDC output with a maximum current of 5A, delivering up to 30W of power.
This converter features a 9-18VDC input voltage range and achieves an efficiency of 78%. Key electrical specifications include a voltage accuracy of ±2.0% for single outputs, line regulation of ±0.5% max, and load regulation of ±1.0% max. It also offers continuous short circuit protection.
The operating temperature range for this unit is -25°C to 71°C, with a maximum case temperature of 100°C. The dimensions are 50.8mm x 50.8mm x 10.2mm. It includes features like remote On/Off control and output trimming.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 5VDC.
The maximum output current is 5A.
The input voltage range is 9-18VDC.
The power rating is 30W.
The efficiency is 78%.
The operating temperature range is -25°C to 71°C.
It is a chassis mount type.
