| Category | |
| Manufacturer Name | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Width |

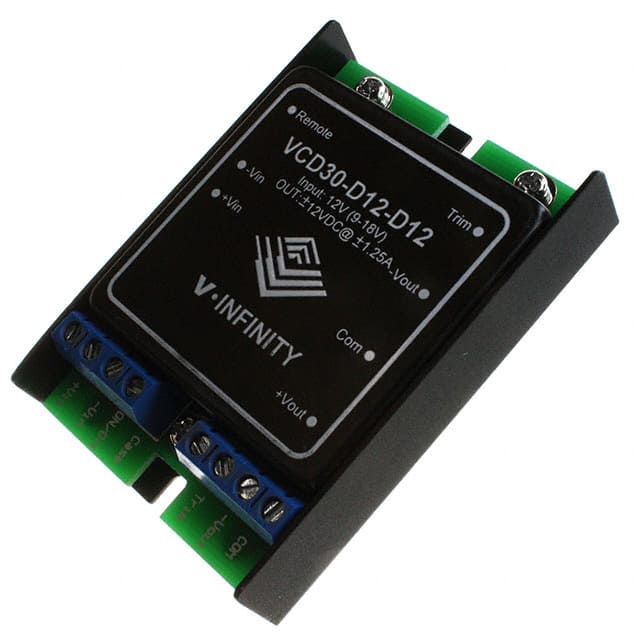

The CUI Inc. VCD30-D12-D12-T is a 30W DC-DC converter designed for various power supply applications. It accepts an input voltage range of 9 to 18 VDC and provides dual outputs of 12 VDC and -12 VDC, each capable of delivering 1.25A.
This converter features an efficiency of 82% and operates within a temperature range of -25°C to 71°C. Its dimensions are 57.15 x 76.2 x 15.24 mm (2.25 x 3 x 0.6 inches). The unit is of an enclosed type and designed for chassis mounting.
Key specifications include a power rating of 30W, two output channels, and a chassis mount type. The product is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 9 to 18 VDC.
The converter provides dual outputs of 12V and -12V.
It has a power rating of 30W.
It uses chassis mount mounting type.
-25°C to 71°C.
The efficiency is approximately 82%.
