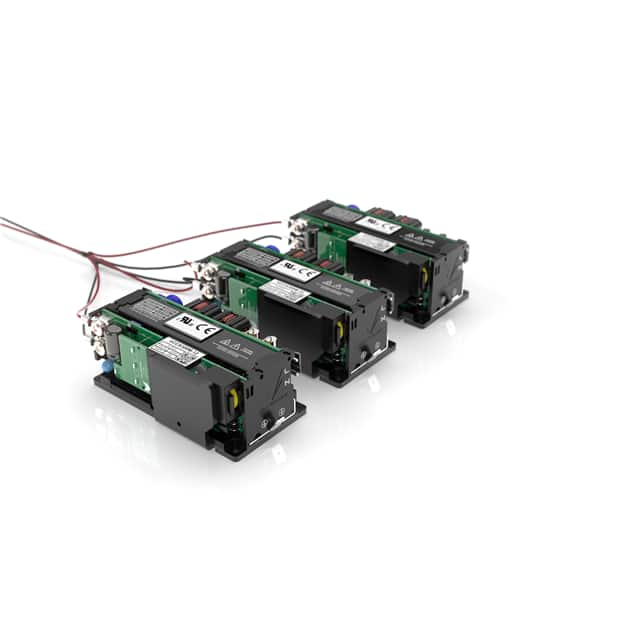

The Vox Power VCCS300M-48 is a 300 Watt, single-output, conduction-cooled AC/DC power supply designed for medical applications. It delivers a 48V output voltage with a maximum current of 6.25A, housed in a compact 2" x 4" x 1.61" (101.3mm x 54.0mm x 40.2mm) open-frame package suitable for chassis mounting.
This power supply operates with a wide AC input voltage range of 85-264Vrms and boasts a high efficiency of up to 95%, with a power factor of 0.99. It meets stringent medical safety standards including IEC/UL60601-1 Edition 3.1 and IEC/UL60601-1-2 Edition 4 for EMC. Additional compliance includes MIL-STD-810G, MIL-STD-461F, and MIL-STD-704F.
The VCCS300M-48 is designed for reliability and silent operation, supporting conduction, convection, or forced-air cooling. It is suitable for Class I or II installations and offers low leakage and touch current, making it ideal for demanding medical equipment such as ventilators, infusion pumps, and medical displays.
The AC input voltage range is 85-264 Vrms and the DC input voltage range is 120-370 VDC.
It is a chassis mount open frame package.
The operating temperature range is -40°C to 70°C with derating.
The output voltage is 48 VDC at a maximum current of 6.25 A for a total output power of 300 W.
It achieves up to 95% efficiency.
It complies with IEC/UL 60601-1 Edition 3.1 (medical), IEC/UL 60601-1-2 Edition 4 (EMC), MIL-STD-810G, MIL-STD-461F, and MIL-STD-704F.
The AC input frequency range is 47-63 Hz.
