| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

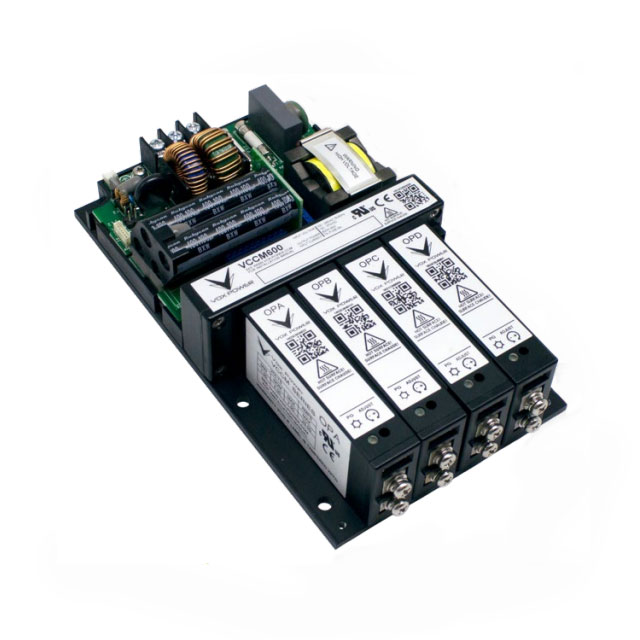

The Vox Power VCCM600M-DBCB-DK000 is a versatile open frame AC/DC converter delivering up to 600W of power. It features four independent outputs, including 48V, 12V, 24V, and 12V, with current ratings up to 15A. This configurable power supply operates with a wide input voltage range of 85-264VAC and offers an efficiency of 90%.
Designed for demanding applications, the VCCM600M series is fan-less and conduction-cooled, ensuring silent operation and high reliability. It supports parallel and series connection of modules for higher power or voltage requirements. Key features include adjustable output voltages, load sharing, PFC, remote sense, and universal input.
With dimensions of 7.00" x 4.00" x 1.57", this converter is suitable for chassis mounting. It is approved by CB, CE, CSA, and UL, meeting standard 60601-1 for medical applications. The operating temperature range is -40°C to 70°C, making it robust for various environments.
The VCCM600M-DBCB-DK000 has a continuous output power of 600 Watts and a peak rating of 750 Watts for 5 seconds.
This converter features four isolated DC output modules.
The available output voltages are 48VDC, 12VDC, 24VDC, and 12VDC.
The input voltage range is 85-264VAC and 120-370VDC.
The operating temperature range is -40°C to 70°C.
The efficiency is up to 92%.
Yes, it is approved to IEC/UL60601-1-2 4th Edition (EMC) and standard 60601-1.
